M5010015V

Active

Sensata-Crydom

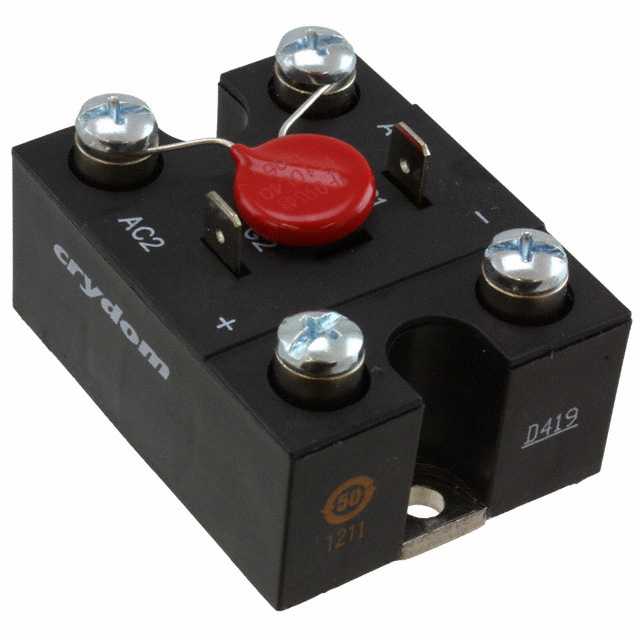

MODULE POWER 100A 1200V SCR CC

Search across all available documentation for this part.

Active

Sensata-Crydom

MODULE POWER 100A 1200V SCR CC

Technical Specifications

Parameters and characteristics for this part

Specification	M5010015V

Current - Gate Trigger (Igt) (Max) [Max]	150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	1500 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes [custom]	2
Number of SCRs, Diodes [custom]	2
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Structure	Bridge, Single Phase - SCRs/Diodes (Layout 1)
Voltage - Off State	1.2 kV

Part	Package / Case	Current - Gate Trigger (Igt) (Max) [Max]	Number of SCRs, Diodes [custom]	Number of SCRs, Diodes [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Structure	Voltage - Off State	Mounting Type
Sensata-Crydom M5010015F	Module	150 mA	2	2	-40 °C	125 ¯C	1500 A	Bridge Single Phase - SCRs/Diodes (Layout 1)	1.2 kV	Chassis Mount
Sensata-Crydom M5010015V	Module	150 mA	2	2	-40 °C	125 ¯C	1500 A	Bridge Single Phase - SCRs/Diodes (Layout 1)	1.2 kV	Chassis Mount
Sensata-Crydom M5010015FV	Module	150 mA	2	2	-40 °C	125 ¯C	1500 A	Bridge Single Phase - SCRs/Diodes (Layout 1)	1.2 kV	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR Module 1.2 kV Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount Module
