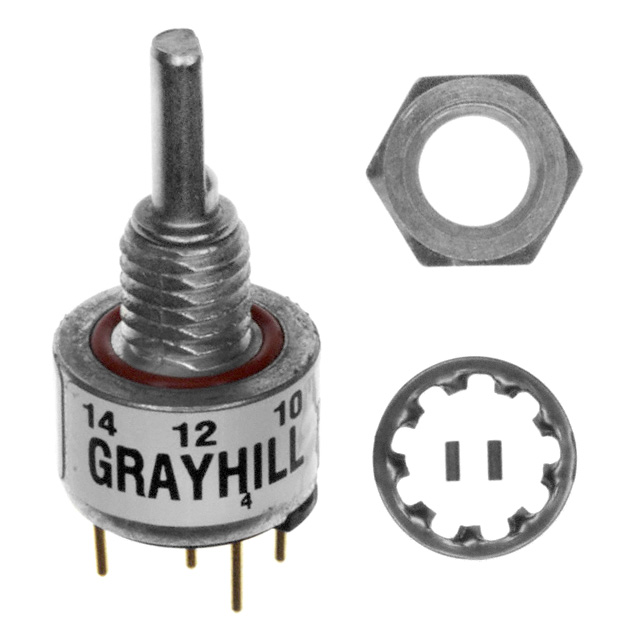

26ASD22-01-1-AJS
ActiveGrayhill Inc.
ROTARY ENCODER MECHANICAL 16PPR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
26ASD22-01-1-AJS
ActiveGrayhill Inc.
ROTARY ENCODER MECHANICAL 16PPR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 26ASD22-01-1-AJS |
|---|---|
| Actuator Type | 1/8" Dia Flatted End |
| Built in Switch | False |
| Detent | True |
| Encoder Type | Mechanical |
| Mounting Type | PCB Through Hole, Panel |
| Orientation | Vertical |
| Output Type | BCD (Absolute) |
| Pulses per Revolution | 16 |
| Rotational Life (Cycles Min) [Min] | 25K |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 32.18 | |
| 5 | $ 27.58 | |||
| 10 | $ 25.84 | |||
| 25 | $ 23.72 | |||
| 50 | $ 22.21 | |||
| 100 | $ 20.85 | |||
| 250 | $ 19.64 | |||
Description
General part information
26ASD22 Series
Rotary Encoder Mechanical 16 BCD (Absolute) Vertical
