MTV18-250Q

Active

3M (TC)

MALE DISCONNECT VINYL INS HIGHLAND BAG 25/BAG

Search across all available documentation for this part.

Active

3M (TC)

MALE DISCONNECT VINYL INS HIGHLAND BAG 25/BAG

Technical Specifications

Parameters and characteristics for this part

Specification	MTV18-250Q

Color	Red
Contact Finish	Tin
Contact Material	ETP, Copper
Features	Butted Seam
Gender	Male
Insulation	Non-Mating End Insulated
Insulation Diameter	3.68 mm
Insulation Diameter [diameter]	0.145 "
Length - Overall	23.62 mm
Length - Overall [x]	0.93 in
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Gender	Features	Mounting Type	Tab Thickness	Tab Thickness	Tab Width	Tab Width	Color	Insulation Diameter	Insulation Diameter [diameter]	Insulation	Terminal Type	Termination	Contact Material	Length - Overall
3M (TC) MTV18-187Q	21.59 mm	0.85 "	22 AWG	17.5 AWG	Tin	Male	Butted Seam	Free Hanging (In-Line)	0.02 "	0.51 mm	4.75 mm	0.187 in	Red	3.68 mm	0.145 "	Non-Mating End Insulated	Standard	Crimp	Copper ETP
3M (TC) MTV18-250Q		0.93 in	22 AWG	17.5 AWG	Tin	Male	Butted Seam	Free Hanging (In-Line)	0.032 in	0.81 mm	6.35 mm	0.25 in	Red	3.68 mm	0.145 "	Non-Mating End Insulated	Standard	Crimp	Copper ETP	23.62 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

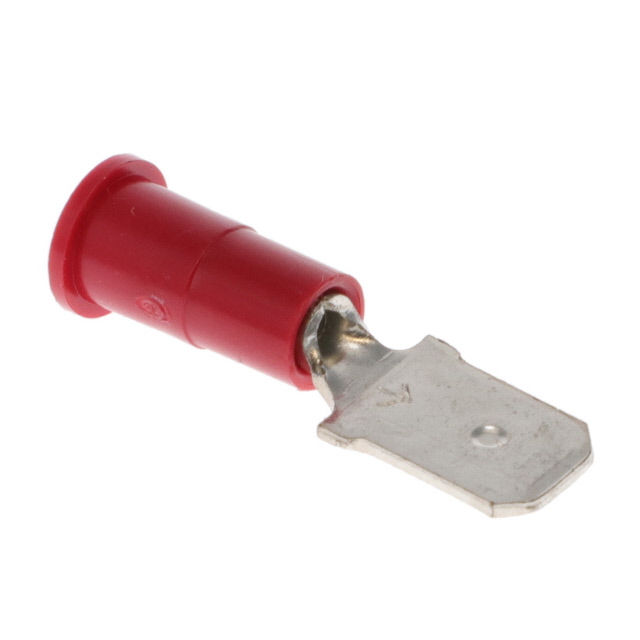

0.250" (6.35mm) Quick Connect Male 18-22 AWG Crimp Connector Non-Mating End Insulated
