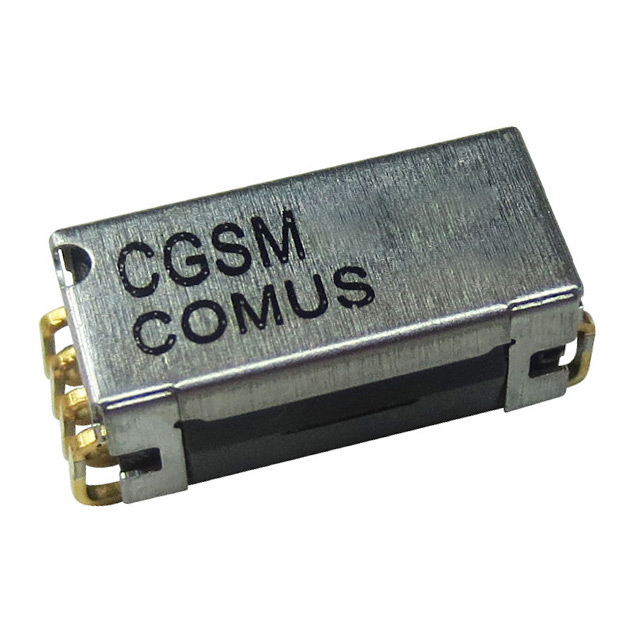

CGSM-051A-J
ActiveComus International
RELAY RF SPST-NO 500MA 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CGSM-051A-J
ActiveComus International
RELAY RF SPST-NO 500MA 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CGSM-051A-J |
|---|---|
| Coil Current | 33.3 mA |
| Coil Resistance | 150 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Ruthenium (Ru) |
| Contact Rating (Current) | 0.5 A |
| Mounting Type | Surface Mount |
| Must Operate Voltage | 3.8 VDC |
| Must Release Voltage | 0.4 VDC |
| Operate Time | 0.25 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 0.05 ms |
| Switching Voltage | 120 VAC, 170 VDC |
| Termination Style | J Lead |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 100 | $ 5.45 | |
Description
General part information
CGSM-051A Series
RELAY RF SPST-NO 500MA 5V
