TX24A-80R-LT-H1E
ActiveJAE Electronics

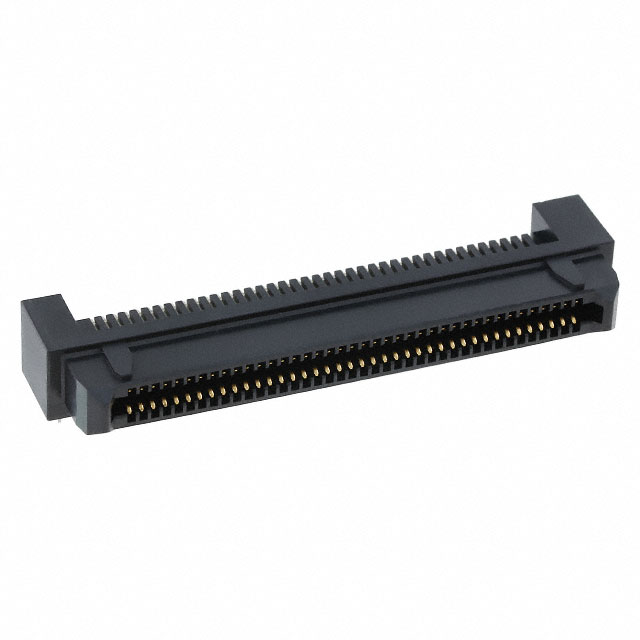

CONN RCPT 80POS R/A GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TX24A-80R-LT-H1E
ActiveJAE Electronics
CONN RCPT 80POS R/A GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TX24A-80R-LT-H1E |
|---|---|
| Connector Type | Receptacle, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Height Above Board | 9 mm |
| Height Above Board | 0.354 in |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 80 |
| Number of Rows | 2 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.08 | |
| 10 | $ 4.59 | |||
| 25 | $ 4.34 | |||
| 40 | $ 4.23 | |||
| 80 | $ 4.02 | |||
| 230 | $ 3.73 | |||
Description
General part information
TX24A-80 Series
80 Position Connector Receptacle, Outer Shroud Contacts Through Hole, Right Angle Gold
