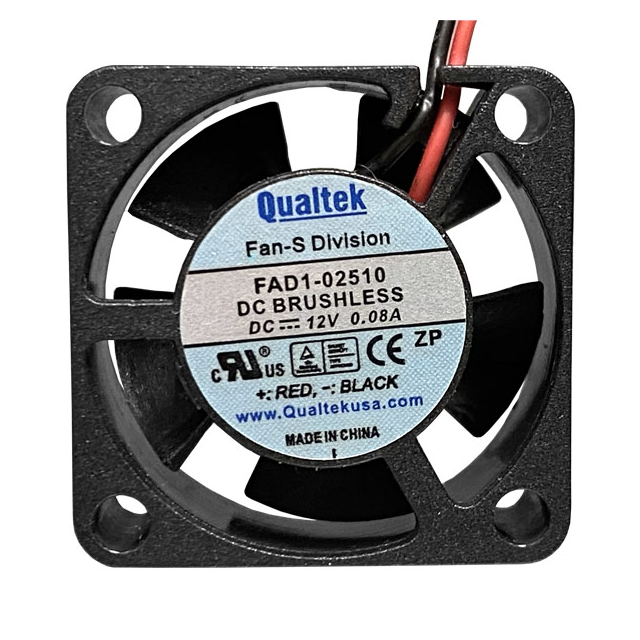

FAD1-02510CBMW11

Active

Qualtek

FAN AXIAL 25X10MM 12VDC WIRE

Search across all available documentation for this part.

Active

Qualtek

FAN AXIAL 25X10MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Fan Type	Air Flow	Air Flow	Termination	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Current Rating (Amps)	Width [y]	RPM	Noise	Bearing Type	Size / Dimension [x]	Size / Dimension [z]	Material - Frame	Voltage - Rated	Voltage Range [Max]	Voltage Range [Min]	Approval Agency	Static Pressure	Static Pressure	Material - Blade	Weight	Weight
Qualtek FAD1-02510CBAW11	0.48 W	Tubeaxial	1.3 CFM	0.036 m³/min	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	40 mA	10 mm	6000 RPM	12.5 dB(A)	Ball	25 mm	25 mm	Plastic	12 VDC	13.2 VDC	10.8 VDC	CE cURus TUV	16.2 Pa	0.065 in H2O	Plastic	0.018 lb	8.16 g
Qualtek FAD1-02510CBMW11	720 mW	Tubeaxial	2.1 CFM	0.059 mł/min	2 Wire Leads	70 °C	70 °C	-10 °C	-10 °C	58 mA	10 mm	10000 RPM	23 dB(A)	Ball	25 mm	25 mm	Plastic	12 VDC	13.2 VDC	10.8 VDC	CE cURus TUV	37.4 Pa	0.15 in H2O	Plastic	0.018 lb	8.16 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.10

General part information

Fan Tubeaxial 12VDC Square - 25mm L x 25mm H Ball 2.1 CFM (0.059mł/min) 2 Wire Leads
