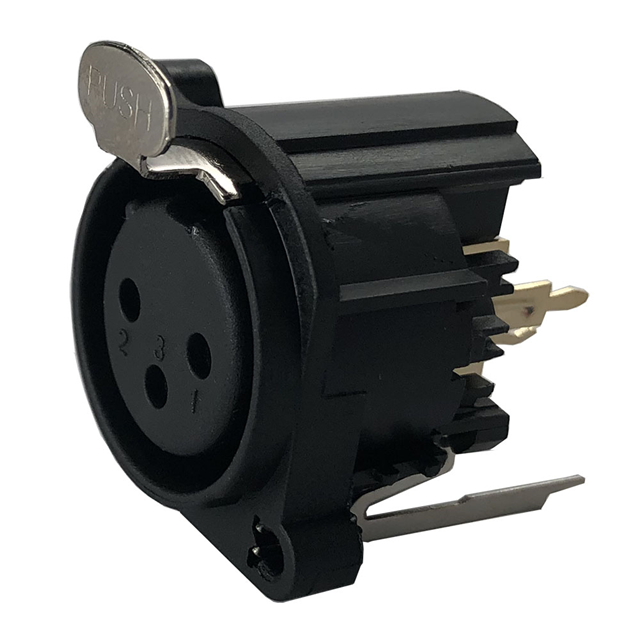

IO-XLR3-F-EV

Active

IO Audio Technologies

XLR CONNECTOR, 3 CONTACTS, JACK, PANEL PCB MOUNT, GOLD PLATED CONTACTS, NYLON (POLYAMIDE) BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIO-XLR3-F-EV Drawing with PCB Footprint Datasheet +1

IO-XLR3-F-EV

Active

IO Audio Technologies

XLR CONNECTOR, 3 CONTACTS, JACK, PANEL PCB MOUNT, GOLD PLATED CONTACTS, NYLON (POLYAMIDE) BODY

Deep-Dive with AI

DocumentsIO-XLR3-F-EV Drawing with PCB Footprint Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IO-XLR3-F-EV

Applications	Audio, Video, Lighting Control, Medical
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Fastening Type	Latch Lock
Features	Board Guide, Ground
Insert Material	Nylon, Polyamide (PA)
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	XLR
Shielding	Unshielded
Termination	Solder

IO-XLR3 Series

Part	Contact Finish - Mating	Contact Material	Current Rating (Amps)	Color	Primary Material	Features	Insert Material	Orientation	Voltage Rating	Shell Finish	Connector Type	Mounting Feature	Shielding	Fastening Type	Shell Size - Insert	Shell Material	Applications	2nd Connector Shell Size - Insert	Cable Type	Cable Material	1st Connector Mounting Type	1st Connector Shell Size - Insert	1st Connector Gender	Assembly Configuration	2nd Connector Type	1st Connector Number of Positions Loaded	2nd Connector Number of Positions	2nd Connector Number of Positions Loaded	1st Connector Number of Positions	Length	Length	1st Connector Type	2nd Connector Mounting Type	2nd Connector Gender	Length [x]	Length [x]	Mounting Type	Termination	Backshell Material, Plating
IO Audio Technologies IO-XLR3-F-JL	Silver	Phosphor Bronze	15 A	Silver	Metal	Ground	Nylon Polyamide (PA)	Keyed	125 VAC	Nickel	Receptacle Female Sockets	Flange	Shielded	Latch Lock	XLR	Zinc Die Cast	Audio Lighting Control Medical Video
IO Audio Technologies IO-XLR3-6-X				Black									Double Shielded					XLR	Round	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	XLR	Male Pins	Standard	Plug	All	3	All	3	6 ft	1.83 m	Receptacle	Free Hanging (In-Line)	Female Sockets
IO Audio Technologies IO-XLR3-3-P				Black									Double Shielded					XLR	Round	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	XLR	Male Pins	Standard	Plug	All	3	All	3			Receptacle	Free Hanging (In-Line)	Female Sockets	3 ft	914.4 mm
IO Audio Technologies IO-XLR3-6-E				Black									Shielded					XLR	Round	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	XLR	Male Pins	Standard	Plug	All	3	All	3	6 ft	1.83 m	Receptacle	Free Hanging (In-Line)	Female Sockets
IO Audio Technologies IO-XLR3-100-P				Black									Double Shielded					XLR	Round	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	XLR	Male Pins	Standard	Plug	All		All	3			Receptacle	Free Hanging (In-Line)	Female Sockets	100 ft	30.5 m
IO Audio Technologies IO-XLR3-10-E				Black									Shielded					XLR	Round	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	XLR	Male Pins	Standard	Plug	All		All	3	10 ft	3.05 m	Receptacle	Free Hanging (In-Line)	Female Sockets
IO Audio Technologies IO-XLR3-M-JL	Silver	Phosphor Bronze	15 A	Silver	Metal	Ground	Nylon Polyamide (PA)	Keyed	125 VAC	Nickel	Male Pins Receptacle	Flange	Shielded	Latch Lock	XLR	Zinc Die Cast	Audio Lighting Control Medical Video
IO Audio Technologies IO-XLR3-F-EV	Gold	Brass		Black	Plastic	Board Guide Ground	Nylon Polyamide (PA)	Keyed			Receptacle Female Sockets	Flange	Unshielded	Latch Lock	XLR		Audio Lighting Control Medical Video																				Panel Mount Through Hole	Solder
IO Audio Technologies IO-XLR3-M-BKAU	Gold		15 A	Black	Metal	Backshell Strain Relief	Plastic		125 VAC		Male Pins Receptacle		Unshielded	Latch Lock	XLR	Zinc Die Cast	Audio																				Free Hanging (In-Line)		Zinc Die Cast
IO Audio Technologies IO-XLR3-25-E				Black									Shielded					XLR	Round	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	XLR	Male Pins	Standard	Plug	All		All	3	25 ft	7.62 m	Receptacle	Free Hanging (In-Line)	Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.45
		10	$ 2.14
		25	$ 2.05
		50	$ 2.00
		100	$ 1.91
		250	$ 1.73
		500	$ 1.59
		1000	$ 1.36
		2500	$ 1.27
Newark	Each	1	$ 1.66
		10	$ 1.63
		25	$ 1.59
		50	$ 1.49
		100	$ 1.34
		250	$ 1.32
		500	$ 1.24
		1000	$ 1.21

Description

General part information

IO-XLR3 Series

3 Position Circular Connector Receptacle, Female Sockets Solder

Documents

Technical documentation and resources

IO-XLR3-F-EV Drawing with PCB Footprint

Datasheet

Technical Data Sheet EN

Datasheet
