1815-10F

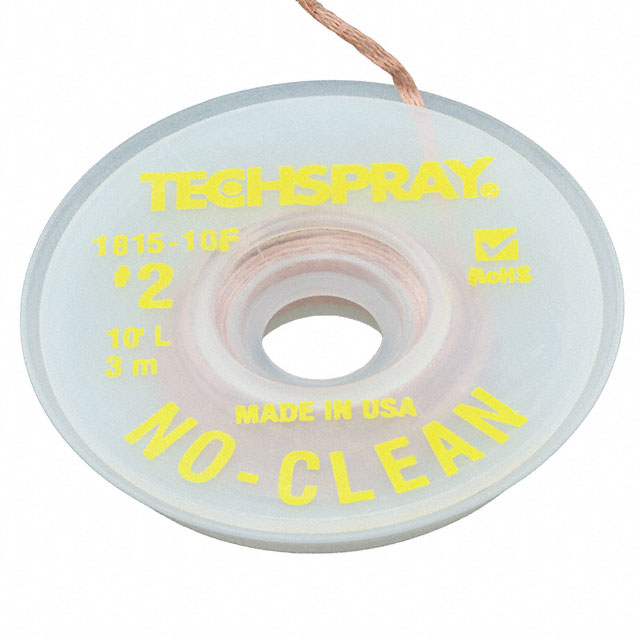

ActiveDESOLDERING BRAID, NO-CLEAN SERIES, YELLOW, FLUX COATED COPPER, 1.4 MM WIDTH, 3 M LENGTH
Deep-Dive with AI
Search across all available documentation for this part.
1815-10F
ActiveDESOLDERING BRAID, NO-CLEAN SERIES, YELLOW, FLUX COATED COPPER, 1.4 MM WIDTH, 3 M LENGTH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1815-10F |
|---|---|
| Color | Yellow |
| Length [x] | 3.048 m |
| Length [x] | 10 ft |
| Product Type | Braid/Wick |
| Shelf Life | 24 Months |
| Shelf Life Start | Date of Manufacture |
| Type | No Clean |
| Width | 1.4 mm |
| Width [y] | 0.055 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
1815 Series
The 1815-10F from Techspray is a yellow colour No-Clean desoldering braid. Desoldering braid is a pre-fluxed copper braid that is used to remove solder which allows components to be replaced and excess solder to be removed. Techspray NoClean wick does not leave behind ionic flux residues that can collect and form branches called dendrites. Other fluxes, if not cleaned properly, can cause dendrites that grow over time and eventually cause short circuits between traces or leads. It meets or exceeds MIL-F-14256, NASA NHB 5300, 4 (34-1), NASA NPC 200-4, NASA SP5002, 1821:HP 8690-0588, 1823: HP 8690-0577, IPC standard-J-STD-004. This desoldering braid is typically used for electronic assembly, electronic repair and for soldering / desoldering.
