325-019-500-107
ActiveEDAC Inc.

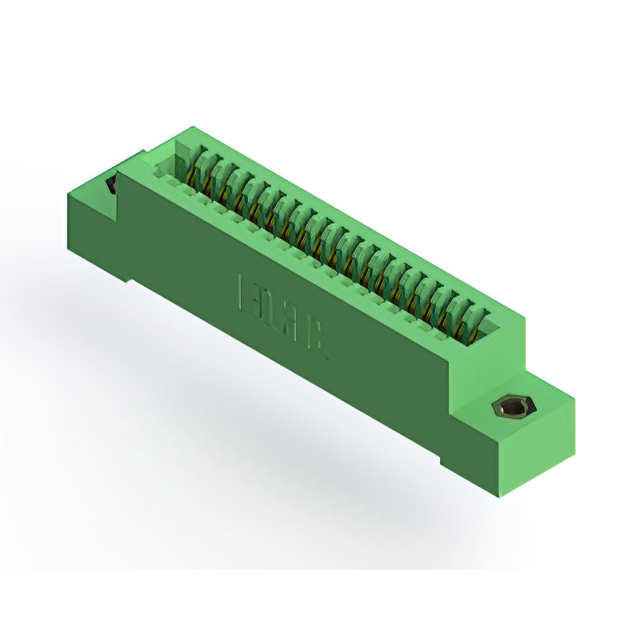

CARD EDGE CONNECTOR, SINGLE SIDE, 3.18 MM, 19 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
325-019-500-107
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 3.18 MM, 19 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 325-019-500-107 |
|---|---|
| Card Thickness | 3.18 mm |
| Card Thickness | 0.125 in |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 19 |
| Number of Positions/Bay/Row [custom] | 19 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
325-019 Series
| Part | Number of Positions/Bay/Row [custom] | Read Out | Gender | Number of Rows | Flange Feature | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Termination | Termination Rows | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Pitch [x] | Pitch [x] | Card Thickness | Card Thickness | Contact Type | Color | Material - Insulation | Number of Positions | Contact Finish | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 19 | Single | Female | 1 | Flush Mount M3 Threaded Insert Top Opening | Through Hole | 10 Áin | 0.25 Ám | Wire Wrap | 1 | 125 °C | -65 ░C | Non Specified - Single Edge | 2.54 mm | 0.1 in | 3.18 mm | 0.125 in | Cantilever | Green | Diallyl Phthalate (DAP) | 19 | Gold | Copper Alloy | ||
EDAC Inc. | 19 | Single | Female | 1 | Through Hole | 10 Áin | 0.25 Ám | Wire Wrap | 1 | 125 °C | -65 ░C | Non Specified - Single Edge | 2.54 mm | 0.1 in | 3.18 mm | 0.125 in | Cantilever | Green | Diallyl Phthalate (DAP) | 19 | Gold | Copper Alloy | |||
EDAC Inc. | 19 | Single | Female | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole | 10 Áin | 0.25 Ám | Solder Eyelet(s) | 1 | 125 °C | -65 ░C | Non Specified - Single Edge | 2.54 mm | 0.1 in | 3.18 mm | 0.125 in | Cantilever | Green | Diallyl Phthalate (DAP) | 19 | Gold | Copper Alloy | ||
EDAC Inc. | 19 | Single | Female | 1 | Flush Mount Top Opening Unthreaded | Through Hole | 10 Áin | 0.25 Ám | Solder Eyelet(s) | 1 | 125 °C | -65 ░C | Non Specified - Single Edge | 2.54 mm | 0.1 in | 3.18 mm | 0.125 in | Cantilever | Green | Diallyl Phthalate (DAP) | 19 | Gold | Copper Alloy | 0.16 in | 4.06 mm |
EDAC Inc. | 19 | Single | Female | 1 | Flush Mount M3 Threaded Insert Top Opening | Through Hole | 10 Áin | 0.25 Ám | Solder Eyelet(s) | 1 | 125 °C | -65 ░C | Non Specified - Single Edge | 2.54 mm | 0.1 in | 3.18 mm | 0.125 in | Cantilever | Green | Diallyl Phthalate (DAP) | 19 | Gold | Copper Alloy | ||
EDAC Inc. | 19 | Single | Female | 1 | Flush Mount M3 Threaded Insert Top Opening | Through Hole | 10 Áin | 0.25 Ám | Solder | 1 | 125 °C | -65 ░C | Non Specified - Single Edge | 2.54 mm | 0.1 in | 3.18 mm | 0.125 in | Cantilever | Green | Diallyl Phthalate (DAP) | 19 | Gold | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
325-019 Series
19 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
