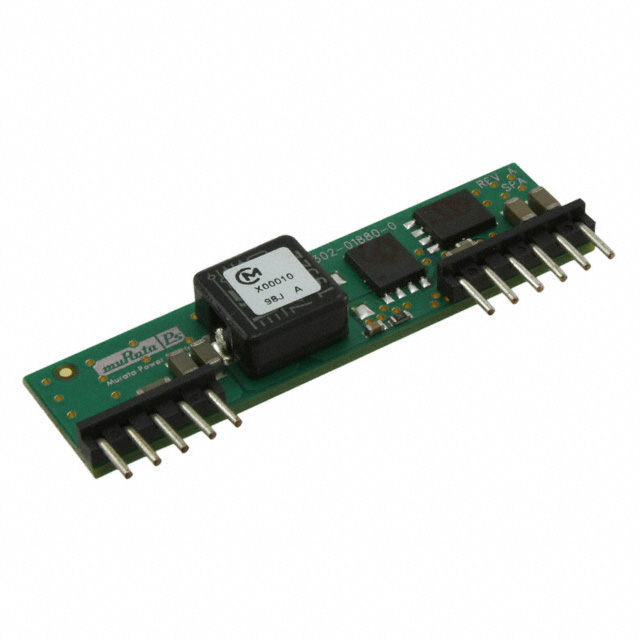

OKX-T/10-W5N-C

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 0.75-3.63V 33W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OKX-T/10-W5N-C

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 0.75-3.63V 33W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OKX-T/10-W5N-C

Applications	ITE (Commercial)
Current - Output (Max) [Max]	10 A
Efficiency	95.5 %
Features	OTP, UVLO, SCP, Remote On/Off, OCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	11-SIP Module
Power (Watts)	33 W
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	0.37 "
Size / Dimension [y]	9.4 mm
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.7 mm
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	2.4 V
Voltage - Output 1 [Max]	3.63 V
Voltage - Output 1 [Min]	0.75 V

OKX-T Series

Part	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Type	Voltage - Input (Min) [Min]	Mounting Type	Applications	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Current - Output (Max) [Max]	Number of Outputs	Package / Case	Voltage - Input (Max) [Max]	Control Features
Murata Power Solutions Inc. OKX-T/16-W5N-C	3.63 V	0.75 V	Non-Isolated PoL Module	2.4 V	Through Hole	ITE (Commercial)	OCP OTP Remote On/Off SCP UVLO	50.8 mm	0.37 "	2 in	0.5 in	12.7 mm	9.4 mm	95 %	85 °C	-40 °C	53 W	16 A	1	11-SIP Module	5.5 V
Murata Power Solutions Inc. OKX-T/3-D12N-C	5.5 V	0.7525 V	Non-Isolated PoL Module	8.3 V	Through Hole	ITE (Commercial)	OCP OTP Remote On/Off SCP UVLO	22.9 mm	0.28 in	0.9 "	0.4 "	10.2 mm	7.1 mm	93 %	85 °C	-40 °C	15 W	3 A	1	5-SIP Module	13.8 V
Murata Power Solutions Inc. OKX-T/5-D12N-C	5.5 V	0.7525 V	Non-Isolated PoL Module	8.3 V	Through Hole	ITE (Commercial)	OCP OTP Remote On/Off SCP UVLO	22.9 mm	0.28 in	0.9 "	0.4 "	10.2 mm	7.1 mm	93 %	85 °C	-40 °C	25 W	5 A	1	5-SIP Module	13.8 V	Active Low Enable
Murata Power Solutions Inc. OKX-T/16-D12N-C	5.5 V	0.75 V	Non-Isolated PoL Module	8.3 V	Through Hole	ITE (Commercial)	OCP OTP Remote On/Off SCP UVLO	50.8 mm	0.37 "	2 in	0.5 in	12.7 mm	9.4 mm	94 %	85 °C	-40 °C	80 W	16 A	1	11-SIP Module	14 V
Murata Power Solutions Inc. OKX-T/3-D12P-C	5.5 V	0.7525 V	Non-Isolated PoL Module	8.3 V	Through Hole	ITE (Commercial)	OCP OTP Remote On/Off SCP UVLO	22.9 mm	0.28 in	0.9 "	0.4 "	10.2 mm	7.1 mm	93 %	85 °C	-40 °C	15 W	3 A	1	5-SIP Module	13.8 V	Active High Enable
Murata Power Solutions Inc. OKX-T/10-W5N-C	3.63 V	0.75 V	Non-Isolated PoL Module	2.4 V	Through Hole	ITE (Commercial)	OCP OTP Remote On/Off SCP UVLO	50.8 mm	0.37 "	2 in	0.5 in	12.7 mm	9.4 mm	95.5 %	85 °C	-40 °C	33 W	10 A	1	11-SIP Module	5.5 V
Murata Power Solutions Inc. OKX-T/10-D12P-C	5.5 V	0.75 V	Non-Isolated PoL Module	8.3 V	Through Hole	ITE (Commercial)	OCP OTP Remote On/Off SCP UVLO	50.8 mm	0.37 "	2 in	0.5 in	12.7 mm	9.4 mm	94.5 %	85 °C	-40 °C	50 W	10 A	1	11-SIP Module	14 V	Active High Enable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

OKX-T Series

Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 3.63V 10A 2.4V - 5.5V Input
