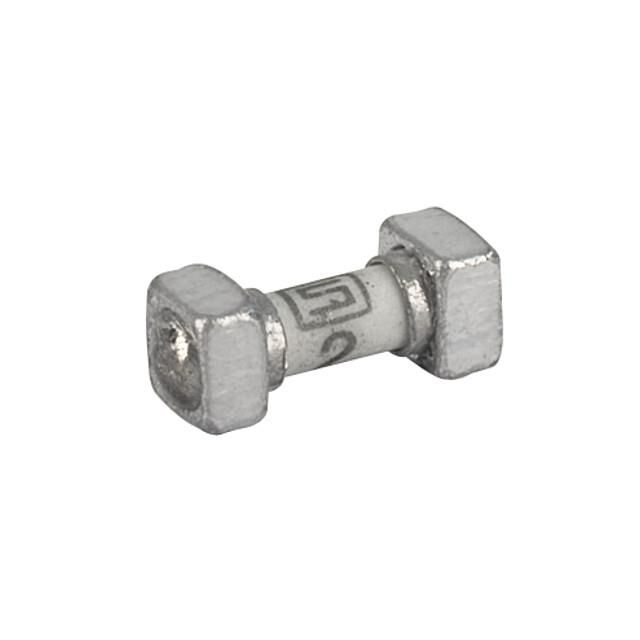

7010.9917.03

Obsolete

SCHURTER Inc.

FUSE BRD MNT 15A 65VAC 65VDC SMD

Search across all available documentation for this part.

Obsolete

SCHURTER Inc.

FUSE BRD MNT 15A 65VAC 65VDC SMD

Technical Specifications

Parameters and characteristics for this part

Specification	7010.9917.03

Breaking Capacity @ Rated Voltage	300 A
Current Rating (Amps)	15 A
Fuse Type	Board Mount
Melting I²t	92
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Package / Case	2-SMD, Square End Block
Response Time	Fast Blow
Size / Dimension [x]	0.276 "
Size / Dimension [x]	7 mm
Size / Dimension [y]	0.1 in
Size / Dimension [y]	2.54 mm
Size / Dimension [z]	0.1 "
Size / Dimension [z]	2.54 mm
Voltage Rating - AC	65 V
Voltage Rating - DC	65 VDC

Part	Breaking Capacity @ Rated Voltage	Voltage Rating - AC	Melting I²t	Voltage Rating - DC	Current Rating (Amps)	Fuse Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Response Time	Mounting Type	Package / Case
SCHURTER Inc. 7010.9917.03	300 A	65 V	92	65 VDC	15 A	Board Mount	85 °C	-55 °C	0.276 "	0.1 "	2.54 mm	0.1 in	7 mm	2.54 mm	Fast Blow	Surface Mount	2-SMD Square End Block

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

15 A 65 V AC 65 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
