DA-075-24-02-00-00
ActiveLaird Thermal Systems, Inc.

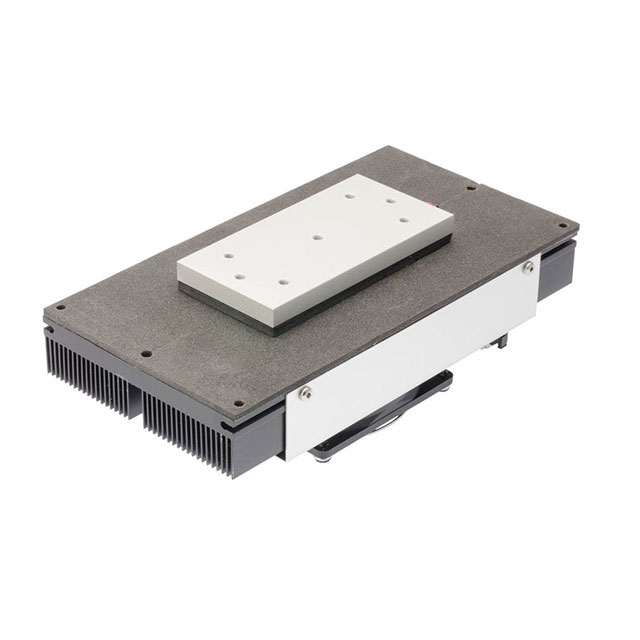

THERMOELECT ASSY DIRECT-AIR 71W
Deep-Dive with AI
Search across all available documentation for this part.
DA-075-24-02-00-00
ActiveLaird Thermal Systems, Inc.
THERMOELECT ASSY DIRECT-AIR 71W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DA-075-24-02-00-00 |
|---|---|
| Current | 3.7 A |
| Dimensions - Overall [x] | 230 mm |
| Dimensions - Overall [y] | 122 mm |
| Dimensions - Overall [z] | 86 mm |
| Fan Location | Warm Side |
| Heat Transfer Type | Direct to Air |
| Operating Temperature [Max] | 49 °C |
| Operating Temperature [Min] | -10 °C |
| Power - Cooling | 71 W |
| Power - Input | 89 W |
| Voltage | 24 V |
| Weight | 1.7 kg |
| Weight | 3.8 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 394.45 | |
| 5 | $ 370.74 | |||
| 10 | $ 360.97 | |||
| 25 | $ 348.45 | |||
Description
General part information
DA-075-24 Series
Direct to Air Thermoelectric Assembly 71 W
Documents
Technical documentation and resources
