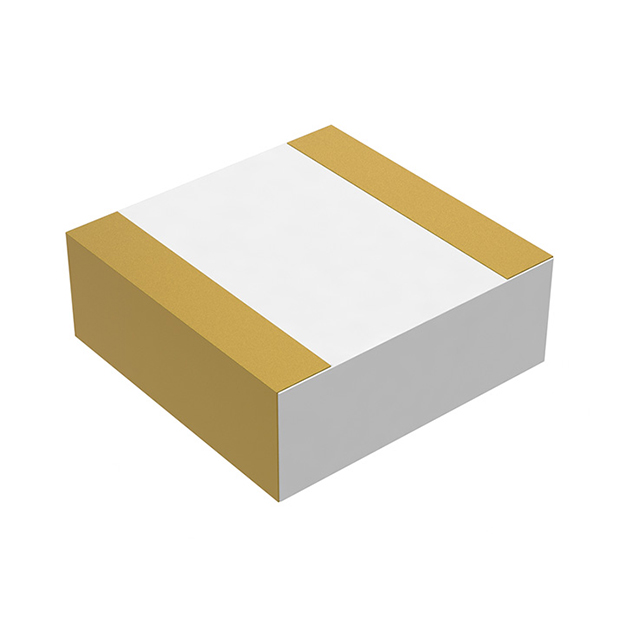

QB3725A60WST
ActiveKyocera AVX
THERMAL CONDUCTOR Q-BRIDGE
Deep-Dive with AI
Search across all available documentation for this part.
QB3725A60WST
ActiveKyocera AVX
THERMAL CONDUCTOR Q-BRIDGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QB3725A60WST |
|---|---|
| Material | Aluminum Nitride |
| Outline [x] | 9.4 mm |
| Outline [y] | 6.22 mm |
| Shape | Rectangular |
| Thermal Conductivity | 254 W/m-K, 160 W/m-K |
| Thermal Resistivity | 4 °C/W, 6 °C/W |
| Thickness | 0.0598 in |
| Thickness | 1.52 mm |
| Type | Thermal Bridge Jumper |
| Usage | Heat Transfer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 12.78 | |
| 10 | $ 9.01 | |||
| 25 | $ 8.04 | |||
| 100 | $ 6.96 | |||
| 250 | $ 6.43 | |||
| Digi-Reel® | 1 | $ 12.78 | ||
| 10 | $ 9.01 | |||
| 25 | $ 8.04 | |||
| 100 | $ 6.96 | |||
| 250 | $ 6.43 | |||
| Tape & Reel (TR) | 500 | $ 6.11 | ||
| 1000 | $ 5.84 | |||
| 1500 | $ 5.76 | |||
Description
General part information
QB3725 Series
Thermal Pad 9.40mm x 6.22mm Rectangular
Documents
Technical documentation and resources
No documents available
