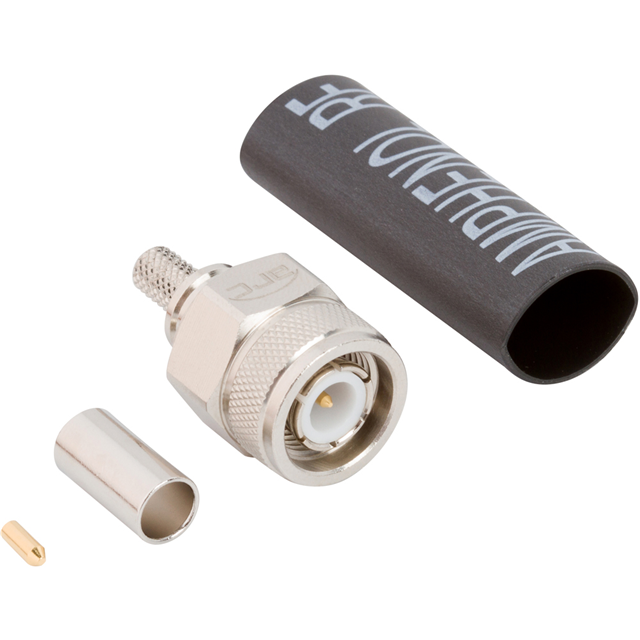

031-6923

Active

Amphenol RF

CONNECTOR: TNC; PLUG; MALE; STRAIGHT; 50Ω; IP67; SOLDERING,CRIMPED

Deep-Dive with AI

Search across all available documentation for this part.

031-6923

Active

Amphenol RF

CONNECTOR: TNC; PLUG; MALE; STRAIGHT; 50Ω; IP67; SOLDERING,CRIMPED

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	031-6923

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-58
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

031-69 Series

Part	Center Contact Plating	Connector Style	Shield Termination	Body Material	Dielectric Material	Cable Group	Frequency - Max [Max]	Ingress Protection	Contact Termination	Housing Color	Mounting Type	Mating Cycles	Body Finish	Impedance	Number of Ports	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Mounting Feature	Voltage Rating	Fastening Type	Cable Group [diameter]
Amphenol RF 031-6923	Gold	TNC	Crimp	Brass	Polytetrafluoroethylene (PTFE)	RG-58	6000 MHz	IP67 - Dust Tight Waterproof	Solder	Silver	Free Hanging (In-Line)	500	Nickel	50 Ohms	1	Male Pin Plug	85 °C	-40 °C	Beryllium Copper
Amphenol RF 031-6907	Gold	TNC	Crimp	Brass	Polytetrafluoroethylene (PTFE)	1.13mm Coaxial Cable	6000 MHz	IP67 - Dust Tight Waterproof	Solder	Silver		500	Nickel	50 Ohms	1	Jack Male Pin	165 °C	-65 ░C	Phosphor Bronze	Bulkhead - Rear Side Nut
Amphenol RF 031-6921	Gold	TNC	Crimp	Brass	Polytetrafluoroethylene (PTFE)	LMR-240	6000 MHz	IP67 - Dust Tight Waterproof	Solder	Silver		500	Nickel	50 Ohms	1	Female Socket Jack	165 °C	-65 ░C	Beryllium Copper	Bulkhead - Front Side Nut
Amphenol RF 031-6963	Gold	TNC	Crimp	Brass	Polytetrafluoroethylene (PTFE)	1.37mm Coaxial Cable	9 GHz		Solder	Silver		500	Nickel	50 Ohms	1	Female Socket Jack	165 °C	-65 ░C	Beryllium Copper	Bulkhead - Front Side Nut	500 V
Amphenol RF 031-6924-EE	Gold	BNC	Crimp	Brass	Polytetrafluoroethylene (PTFE)	RG-58	6000 MHz	IP67 - Dust Tight Waterproof	Crimp	Natural	Free Hanging (In-Line)	500	Nickel	50 Ohms	1	Male Pin Plug	85 °C	-40 °C	Beryllium Copper			Bayonet Lock
Amphenol RF 031-6900	Gold	RP-TNC	Crimp	Brass	Polytetrafluoroethylene (PTFE)	1.13mm Coaxial Cable	6000 MHz	IP67 - Dust Tight Waterproof	Solder	Silver		500	Nickel	50 Ohms	1	Jack Male Pin	165 °C	-65 ░C	Phosphor Bronze	Bulkhead - Rear Side Nut
Amphenol RF 031-6998	Gold	TNC	Crimp	Brass	Polytetrafluoroethylene (PTFE)		9 GHz	IP67 - Dust Tight Waterproof	Solder	Silver		500	Nickel	50 Ohms	1	Female Socket Jack	165 °C	-65 ░C	Beryllium Copper	Bulkhead - Front Side Nut	500 V		0.81 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 16.18
		10	$ 14.34
		25	$ 13.79
		50	$ 13.24
		100	$ 12.50
		250	$ 11.40
		500	$ 10.66
		1000	$ 9.78
TME	N/A	100	$ 16.75

Description

General part information

031-69 Series

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
