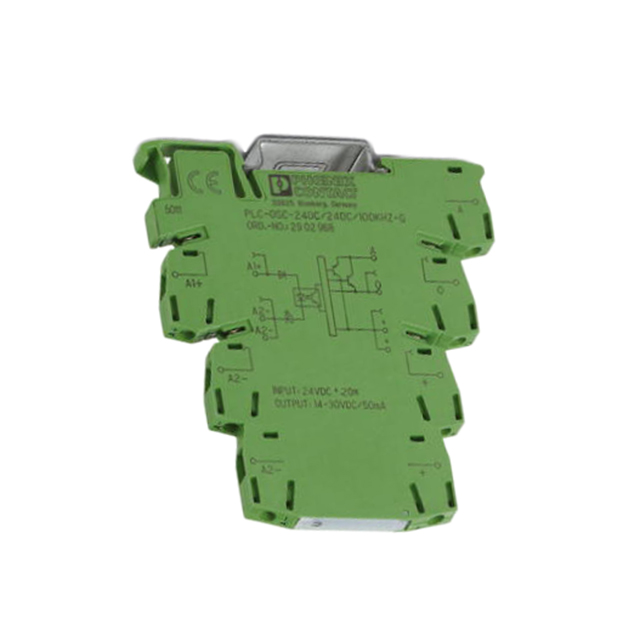

2902968

Active

Phoenix Contact

SSR RELAY SPST-NO 50MA 14-30V

Search across all available documentation for this part.

Active

Phoenix Contact

SSR RELAY SPST-NO 50MA 14-30V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Load [Max]	Voltage - Load [Min]	Load Current	Mounting Type	Package / Case	Voltage - Input	Approval Agency	Termination Style	Output Type	Operating Temperature [Min]	Operating Temperature [Max]
Phoenix Contact 2902968	30 V	14 V	50 mA	DIN Rail	Module	24 V	EN IEC	Screw Terminal	DC	-20 C	60 °C
Phoenix Contact 2902963	30 V	4 V	50 mA	DIN Rail	Module	5 VDC	EAC EX	Screw Terminal	DC	-20 C	60 °C
Phoenix Contact 2902964	30 V	4 V	50 mA	DIN Rail	Module	24 V	EN	Screw Terminal	DC	-20 C	60 °C
Phoenix Contact 2902966	18 V	4 V	50 mA	DIN Rail	Module	24 V	EN IEC	Screw Terminal	DC	-20 C	60 °C
Phoenix Contact 2902965	30 V	4 V	50 mA	DIN Rail	Module	5 VDC	EN	Screw Terminal	DC	-20 C	60 °C
Phoenix Contact 2902969	30 V	4 V	50 mA	DIN Rail		5 VDC	CE UKCA	Spring Terminal	DC	-25 °C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 56.68

General part information

Solid State SPST-NO (1 Form A) Module
