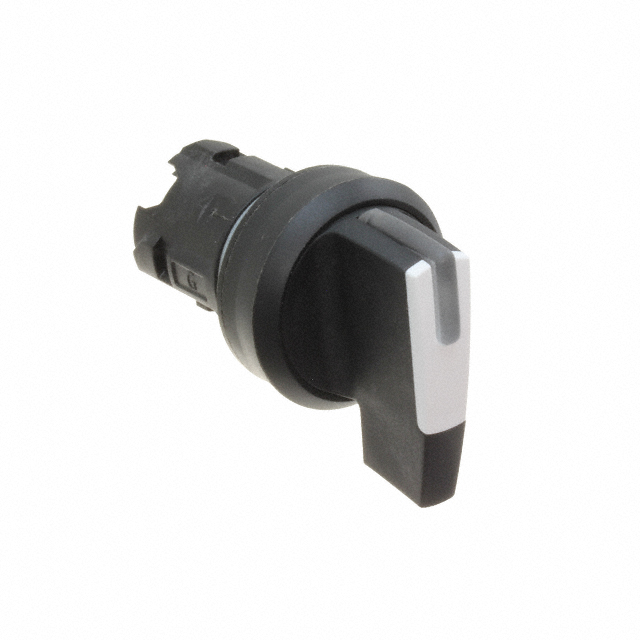

45-2828.1D90.001

Active

EAO

CONFIG SW BODY SELECT NON-ILLUM

Search across all available documentation for this part.

Active

EAO

CONFIG SW BODY SELECT NON-ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	45-2828.1D90.001

(Select First, Then Apply Filters) Compatible Series	45, EAO
Actuator Type	Selector
Illumination	Non-Illuminated
Panel Cutout Dimensions	22.3 mm
Requires	Contact Block(s)
Type	Maintained

Part	Actuator Type	Illumination	Type	Panel Cutout Dimensions	Requires	(Select First, Then Apply Filters) Compatible Series
EAO 45-2828.4D90.001	Selector	Non-Illuminated	Maintained	30.5 mm	Contact Block(s)	45 EAO
EAO 45-2828.4D50.001	Selector	Non-Illuminated	Maintained	30.5 mm	Contact Block(s)	45 EAO
EAO 45-2828.1C50.001	Selector	Non-Illuminated	Maintained	22.3 mm	Contact Block(s)	45 EAO
EAO 45-2828.2C20.001	Selector	Non-Illuminated	Maintained	22.3 mm	Contact Block(s)	45 EAO
EAO 45-2828.2C30.001	Selector	Non-Illuminated	Maintained	22.3 mm	Contact Block(s)	45 EAO
EAO 45-2828.1C40.001	Selector	Non-Illuminated	Maintained	22.3 mm	Contact Block(s)	45 EAO
EAO 45-2828.4D20.001	Selector	Non-Illuminated	Maintained	30.5 mm	Contact Block(s)	45 EAO
EAO 45-2828.1D90.001	Selector	Non-Illuminated	Maintained	22.3 mm	Contact Block(s)	45 EAO
EAO 45-2828.4C20.001	Selector	Non-Illuminated	Maintained	30.5 mm	Contact Block(s)	45 EAO
EAO 45-2828.4C90.001	Selector	Non-Illuminated	Maintained	30.5 mm	Contact Block(s)	45 EAO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Switch Body Selector Non-Illuminated
