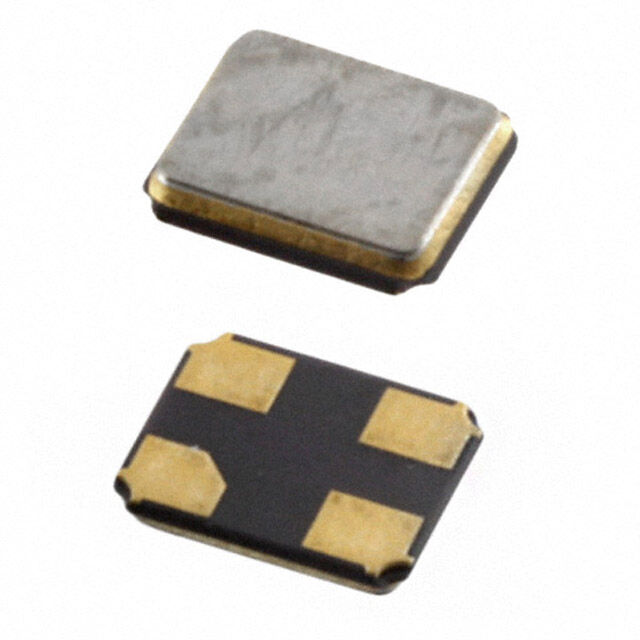

TSX-3225 19.2000MF12Y-AGX GPS

Active

EPSON

CRYSTAL 19.2000MHZ 7PF SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TSX-3225 19.2000MF12Y-AGX GPS

Active

EPSON

CRYSTAL 19.2000MHZ 7PF SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSX-3225 19.2000MF12Y-AGX GPS

ESR (Equivalent Series Resistance)	60 Ohms
Frequency	19.2 MHz
Frequency Stability	10 ppm, 12 ppm
Frequency Tolerance	10 ppm
Height - Seated (Max) [Max] [z]	0.6 mm
Height - Seated (Max) [Max] [z]	0.024 in
Load Capacitance	7 pF, 12 pF
Mounting Type	Surface Mount
Operating Mode	Fundamental
Operating Temperature [Max]	85 °C, 70 °C
Operating Temperature [Min]	-30 ░C, -20 C
Package / Case	4-SMD, No Lead
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	2.5 mm
Size / Dimension [y]	0.098 in
Supplier Device Package	4-SMD (3.2x2.5)
Type	MHz Crystal

TSX-3225 Series

...

Part	Mounting Type	Frequency Stability	Frequency Tolerance	ESR (Equivalent Series Resistance)	Operating Mode	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Load Capacitance	Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package
EPSON TSX-3225 40.0000MF18X-C	Surface Mount	10 ppm	10 ppm	40 Ohms	Fundamental	-20 C	70 °C	4-SMD No Lead	3.2 mm	2.5 mm	0.126 in	0.098 in	MHz Crystal	18 pF	40 MHz	0.6 mm	0.024 in
EPSON TSX-3225 32.0000MF18X-AJ3	Surface Mount	10 ppm	10 ppm	40 Ohms	Fundamental	-20 C	70 °C	4-SMD No Lead	3.2 mm	2.5 mm	0.126 in	0.098 in	MHz Crystal	18 pF	32 MHz	0.6 mm	0.024 in
EPSON TSX-3225 19.2000MF12Y-AGX GPS	Surface Mount	10 ppm 12 ppm	10 ppm	60 Ohms	Fundamental	-30 ░C -20 C	70 °C 85 °C	4-SMD No Lead	3.2 mm	2.5 mm	0.126 in	0.098 in	MHz Crystal	7 pF 12 pF	19.2 MHz	0.6 mm	0.024 in	4-SMD (3.2x2.5)
EPSON TSX-3225 27.0000MF10Z-W3	Surface Mount	10 ppm	10 ppm	40 Ohms	Fundamental	-20 C	70 °C	4-SMD No Lead	3.2 mm	2.5 mm	0.126 in	0.098 in	MHz Crystal	10 pF	27 MHz	0.6 mm	0.024 in
EPSON TSX-3225 38.4000MF15Y-AJ3	Surface Mount	10 ppm	10 ppm	40 Ohms	Fundamental	-20 C	70 °C	4-SMD No Lead	3.2 mm	2.5 mm	0.126 in	0.098 in	MHz Crystal	15 pF	38.4 MHz	0.6 mm	0.024 in
EPSON TSX-3225 38.40M-C0AANNG40RG6	Surface Mount	10 ppm	10 ppm	40 Ohms	Fundamental	-20 C	70 °C	4-SMD No Lead	3.2 mm	2.5 mm	0.126 in	0.098 in	MHz Crystal		38.4 MHz	0.6 mm	0.024 in
EPSON TSX-3225 20.0000MF10Z-W3	Surface Mount	10 ppm	10 ppm	60 Ohms	Fundamental	-20 C	70 °C	4-SMD No Lead	3.2 mm	2.5 mm	0.126 in	0.098 in	MHz Crystal	10 pF	20 MHz	0.6 mm	0.024 in
EPSON TSX-3225 40.0000MF10Z-K3	Surface Mount	10 ppm	10 ppm	40 Ohms	Fundamental	-20 C	70 °C	4-SMD No Lead	3.2 mm	2.5 mm	0.126 in	0.098 in	MHz Crystal	10 pF	40 MHz	0.6 mm	0.024 in
EPSON TSX-3225 32.0000MF20X-B6	Surface Mount	10 ppm	10 ppm	40 Ohms	Fundamental	-20 C	70 °C	4-SMD No Lead	3.2 mm	2.5 mm	0.126 in	0.098 in	MHz Crystal	20 pF	32 MHz	0.6 mm	0.024 in
EPSON TSX-3225 40.0000MF18X-C6	Surface Mount	10 ppm	10 ppm	40 Ohms	Fundamental	-20 C	70 °C	4-SMD No Lead	3.2 mm	2.5 mm	0.126 in	0.098 in	MHz Crystal	18 pF	40 MHz	0.6 mm	0.024 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	100	$ 0.61

Description

General part information

TSX-3225 Series

19.2 MHz ±10ppm Crystal 7pF 60 Ohms 4-SMD, No Lead

Documents

Technical documentation and resources
