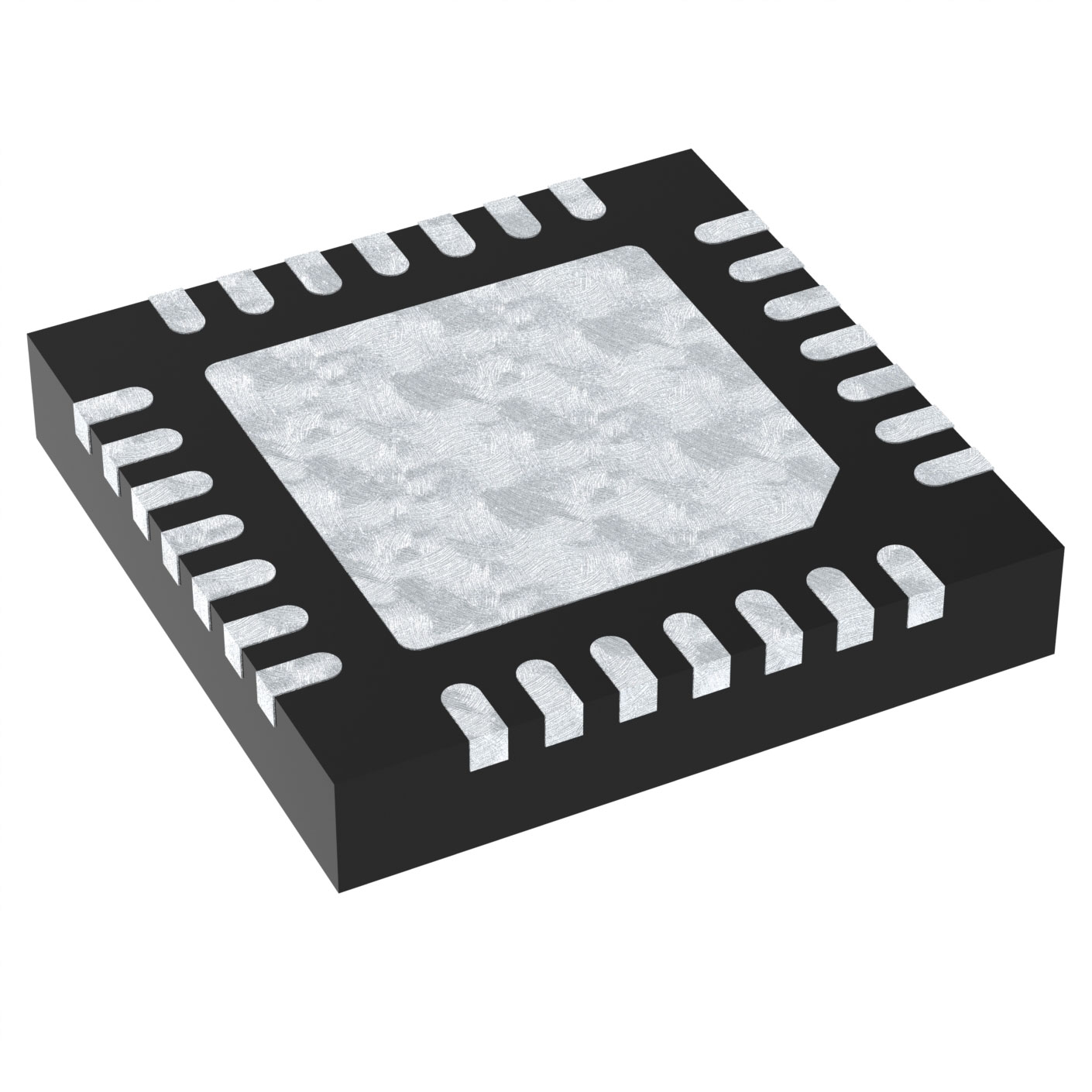

EM9304V01LF28B
ActiveEM Microelectronic
IC RF TXRX+MCU BLE 28QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EM9304V01LF28B
ActiveEM Microelectronic
IC RF TXRX+MCU BLE 28QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EM9304V01LF28B |
|---|---|
| Current - Receiving | 3.3 mA |
| Current - Transmitting [Max] | 9.9 mA |
| Current - Transmitting [Min] | 2.2 mA |
| Data Rate (Max) | 1 Mbps |
| Frequency | 2.4 GHz |
| GPIO | 1 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 28-WFQFN Exposed Pad |
| Power - Output | 6.1 dBm |
| Protocol | Bluetooth v5.0 |
| RF Family/Standard | Bluetooth |
| Sensitivity | -94 dBm |
| Serial Interfaces | GPIO, SPI, UART, I2S |
| Supplier Device Package | 28-QFN (4x4) |
| Type | TxRx + MCU |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.06 | |
| 10 | $ 2.75 | |||
| 25 | $ 2.60 | |||
| 100 | $ 2.25 | |||
| 250 | $ 2.13 | |||
| 500 | $ 1.91 | |||
| 1000 | $ 1.61 | |||
| Digi-Reel® | 1 | $ 3.06 | ||
| 10 | $ 2.75 | |||
| 25 | $ 2.60 | |||
| 100 | $ 2.25 | |||
| 250 | $ 2.13 | |||
| 500 | $ 1.91 | |||
| 1000 | $ 1.61 | |||
| Tape & Reel (TR) | 2500 | $ 1.53 | ||
| 5000 | $ 1.48 | |||
Description
General part information
EM9304 Series
IC RF TxRx + MCU Bluetooth Bluetooth v5.0 2.4GHz 28-WFQFN Exposed Pad
