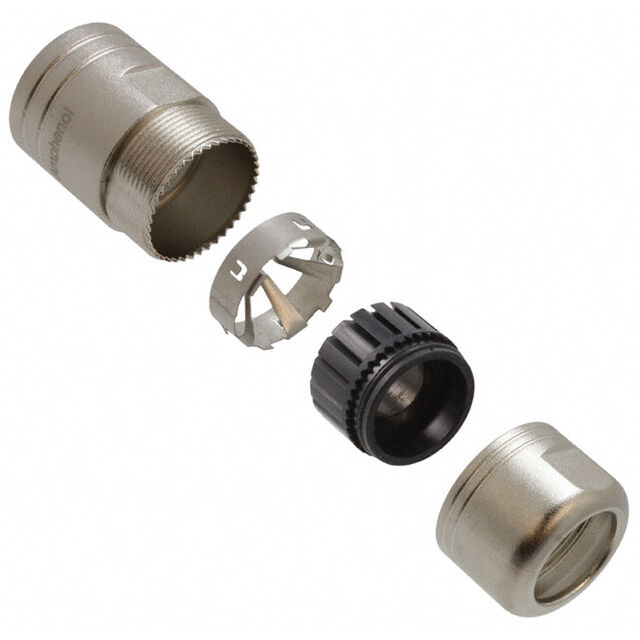

MA3CG-S2

Active

Amphenol Sine Systems Corp

CABLE GRIP 7.5-11MM ZINC

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CABLE GRIP 7.5-11MM ZINC

Technical Specifications

Parameters and characteristics for this part

Specification	MA3CG-S2

Color	Gray
Includes	Gasket, Seal, Nut
Ingress Protection	IP67 - Dust Tight, Waterproof
Material	Zinc
Outside Cable Diameter (Max) [Max]	0.433 in
Outside Cable Diameter (Max) [Max]	11 mm
Outside Cable Diameter (Min) [Min]	7.5 mm
Outside Cable Diameter (Min) [Min]	0.295 in
Panel Hole Size	0.91 in
Panel Hole Size	23.1 mm
Type	Cable Grip

Part	Type	Color	Includes	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Ingress Protection	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
Amphenol Sine Systems Corp MA3CG-S2	Cable Grip	Gray	Gasket Nut Seal	0.91 in	23.1 mm	0.433 in	11 mm	7.5 mm	0.295 in	IP67 - Dust Tight Waterproof	Zinc
Amphenol Sine Systems Corp MA3CG-S4	Cable Grip	Gray	Gasket Nut Seal							IP67 - Dust Tight Waterproof	Zinc	0.492 in	12.5 mm	-20 C	130 °C	0.591 in	15 mm
Amphenol Sine Systems Corp MA3CG-S1	Cable Grip	Gray	Gasket Nut Seal	0.91 in	23.1 mm					IP67 - Dust Tight Waterproof	Zinc	0.177 in				0.295 "	7.5 mm	4.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Grip Zinc Gray

Technical documentation and resources
