M39250 SL002

Active

ALPHA WIRE

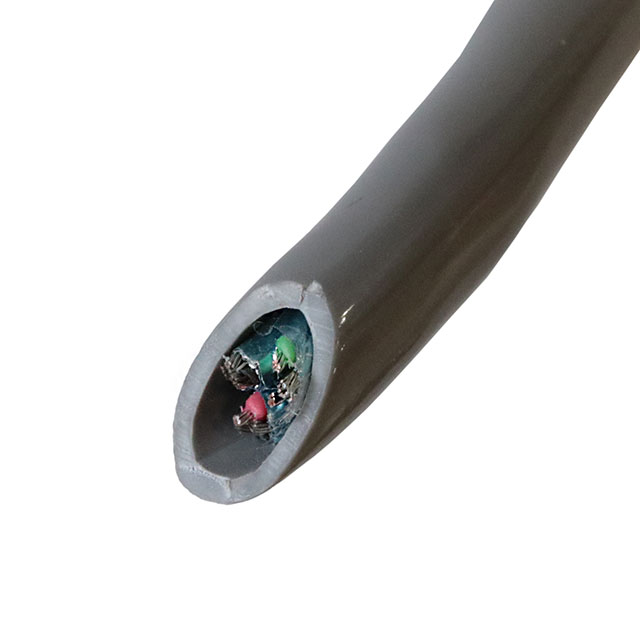

MULTI-PAIR 6COND 24AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 6COND 24AWG SLATE

Technical Specifications

Parameters and characteristics for this part

Specification	M39250 SL002

Cable Type	Multi-Pair
Conductor Insulation	Foam Polypropylene (FPP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.34 in
Jacket (Insulation) Diameter [diameter]	8.64 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.048 in
Jacket (Insulation) Thickness	1.219 mm
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	6
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2493
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	24 AWG

Part	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Length [x]	Length [x]	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Ratings	Cable Type	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Number of Conductors	Voltage	Shield Material	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Coverage	Length	Length
ALPHA WIRE M39250 SL002	Poly-Vinyl Chloride (PVC)	0.34 in	8.64 mm	Drain Wire Rip Cord	500 '	152.4 m	Foam Polypropylene (FPP)	-20 C	90 °C	Foil	UL Style 2493	Multi-Pair	Slate	32 AWG	7	Copper Tinned	6	300 V	Aluminum	24 AWG	0.048 in	1.219 mm	100 %
ALPHA WIRE M39250 SL199	Poly-Vinyl Chloride (PVC)	0.34 in	8.64 mm	Drain Wire Rip Cord			Foam Polypropylene (FPP)	-20 C	90 °C	Braid Foil	UL Style 2960	Multi-Pair	Slate	32 AWG	7	Copper Tinned	6	300 V	Aluminum Copper Tinned	24 AWG	0.048 in	1.219 mm	90 % 100 %	914.4 m	3000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 (3 Pair Twisted) Conductor Multi-Pair Cable Slate 24 AWG Foil 500.0' (152.4m)
