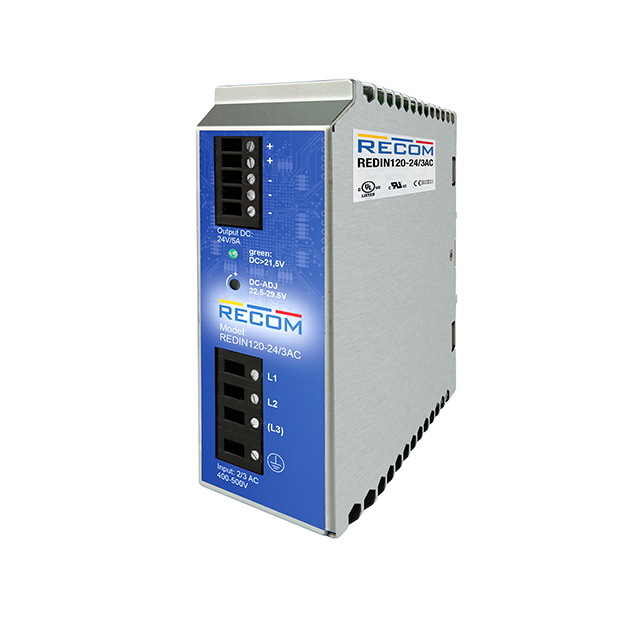

REDIN120-24/3AC

Obsolete

RECOM Power

DIN RAIL POWER SUPPLIES 120W 320-575VIN 24VOUT 5A DIN

Search across all available documentation for this part.

Obsolete

RECOM Power

DIN RAIL POWER SUPPLIES 120W 320-575VIN 24VOUT 5A DIN

Technical Specifications

Parameters and characteristics for this part

Specification	REDIN120-24/3AC

AC Voltage - Input [Max]	575 VAC
AC Voltage - Input [Min]	320 VAC, 360 VAC
Applications	ITE (Commercial), Hazardous Locations
Approval Agency	CE, cURus, cULus
Current - Output (Max) [Max]	5 A
Efficiency	89 %
Features	Adjustable Output
Input Type	AC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Size / Dimension [x]	4.53 "
Size / Dimension [x]	115 mm
Size / Dimension [y]	40 mm
Size / Dimension [y]	1.57 "
Size / Dimension [z]	5.12 "
Size / Dimension [z]	130 mm
Voltage - Isolation	4.242 kV
Voltage - Output 1	24 V

DIN Rail Power Supplies 120W 320-575Vin 24Vout 5A DIN

Part	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Input Type	Number of Outputs	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Approval Agency	Minimum Load Required	Current - Output (Max) [Max]	Applications	Efficiency	Voltage - Isolation
RECOM Power REDIN120-24/3AC	24 V	55 °C	-25 °C	Adjustable Output	4.53 "	5.12 "	40 mm	115 mm	130 mm	1.57 "	AC	1	320 VAC 360 VAC	575 VAC	CE cULus cURus		5 A	Hazardous Locations ITE (Commercial)	89 %	4.242 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 125.76

General part information

DIN Rail Power Supplies 120W 320-575Vin 24Vout 5A DIN
