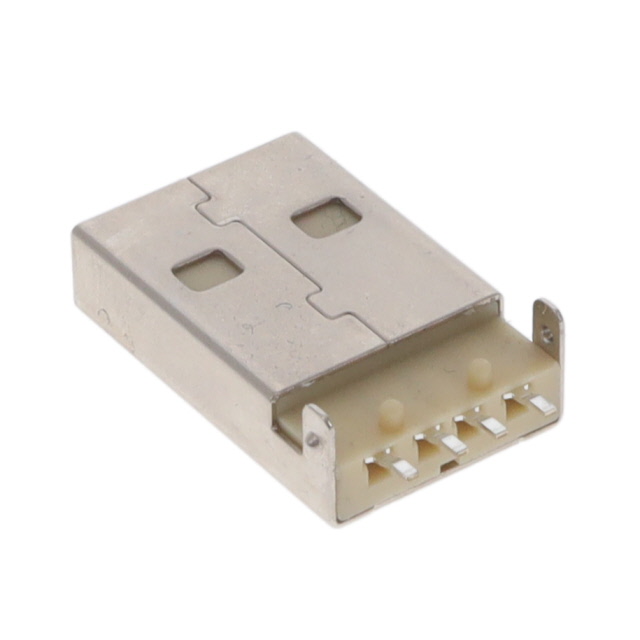

1002-016-01101-TR
ActiveCnC Tech, LLC
USB 2.0, 4P, A/M, ULTRA FLAT, 30
Deep-Dive with AI
Search across all available documentation for this part.
1002-016-01101-TR
ActiveCnC Tech, LLC
USB 2.0, 4P, A/M, ULTRA FLAT, 30
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1002-016-01101-TR |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.5 A |
| Gender | Plug |
| Insulation Color | White |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Brass |
| Shielding | Unshielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.42 | |
| 10 | $ 1.23 | |||
| 25 | $ 1.18 | |||
| 50 | $ 1.16 | |||
| 100 | $ 1.10 | |||
| 250 | $ 1.00 | |||
| Digi-Reel® | 1 | $ 1.42 | ||
| 10 | $ 1.23 | |||
| 25 | $ 1.18 | |||
| 50 | $ 1.16 | |||
| 100 | $ 1.10 | |||
| 250 | $ 1.00 | |||
| Tape & Reel (TR) | 600 | $ 0.97 | ||
| 1200 | $ 0.83 | |||
| 1800 | $ 0.81 | |||
| 3000 | $ 0.78 | |||
| 6000 | $ 0.74 | |||
Description
General part information
1002-016 Series
USB-A (USB TYPE-A) USB 2.0 Plug Connector 4 Position Surface Mount, Right Angle; Through Hole
