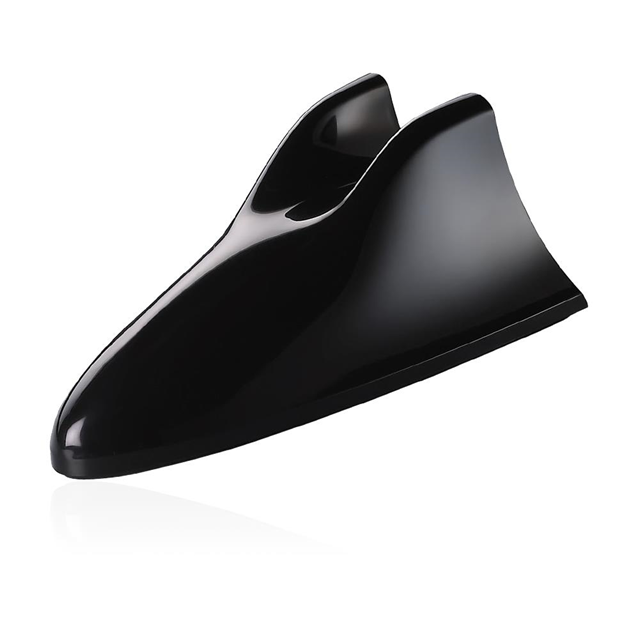

MA1130.A.LBICGT.002

Obsolete

TAOGLAS

6IN1 RAPTOR II 0.3M RG-174:GNSS

Search across all available documentation for this part.

Obsolete

TAOGLAS

6IN1 RAPTOR II 0.3M RG-174:GNSS

Technical Specifications

Parameters and characteristics for this part

Specification	MA1130.A.LBICGT.002

Antenna Type	Module
Applications	GLONASS, Wi-Fi, 3G, GPS, 4G, Beidou, Galileo, LTE, 2G
Features	300 mm
Features	Cable
Frequency (Center/Band)	2.595 GHz, 761 MHz, 1.795 GHz, 1.92 GHz, 1.602 GHz, 2.45 GHz, 1.584 GHz, 2.045 GHz, 5.5 GHz, 859 MHz, 5.887 GHz, 920 MHz
Frequency Group	Wide Band
Frequency Range [Max]	2.7 GHz, 5.8 GHz, 2.17 GHz, 960 MHz
Frequency Range [Min]	2.4 GHz, 698 MHz, 1.71 GHz, 2.3 GHz
Gain	0.64 dBi, -1.5 dBi, -2.5 dBi, 6.6 dBi, 3.43 dBi, 3.4 dBi, 1.61 dBi, 4 dBi, 5.69 dBi, 3.54 dBi, -1 dBi, 2.92 dBi
Height (Max) [Max]	70.8 mm
Height (Max) [Max]	2.787 in
Number of Bands	14
RF Family/Standard	Navigation, WiFi, Cellular
VSWR	2

Part	Antenna Type	Applications	RF Family/Standard	Number of Bands	Features	Features	Height (Max) [Max]	Height (Max) [Max]	Frequency (Center/Band)	Frequency Group	VSWR	Frequency Range [Min]	Frequency Range [Max]	Gain
TAOGLAS MA1130.A.LBICGT.002	Module	2G 3G 4G Beidou Galileo GLONASS GPS LTE Wi-Fi	Cellular Navigation WiFi	14	300 mm	Cable	70.8 mm	2.787 in	1.584 GHz 1.602 GHz 1.795 GHz 1.92 GHz 2.045 GHz 2.45 GHz 2.595 GHz 5.5 GHz 5.887 GHz 761 MHz 859 MHz 920 MHz	Wide Band	2	1.71 GHz 2.3 GHz 2.4 GHz 698 MHz	2.17 GHz 2.7 GHz 5.8 GHz 960 MHz	-2.5 dBi -1.5 dBi -1 dBi 0.64 dBi 1.61 dBi 2.92 dBi 3.4 dBi 3.43 dBi 3.54 dBi 4 dBi 5.69 dBi 6.6 dBi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF ANTENNA 2G, 3G, 4G, Beidou, Galileo, GLONASS, GPS, LTE, Wi-Fi Module SMA Male
