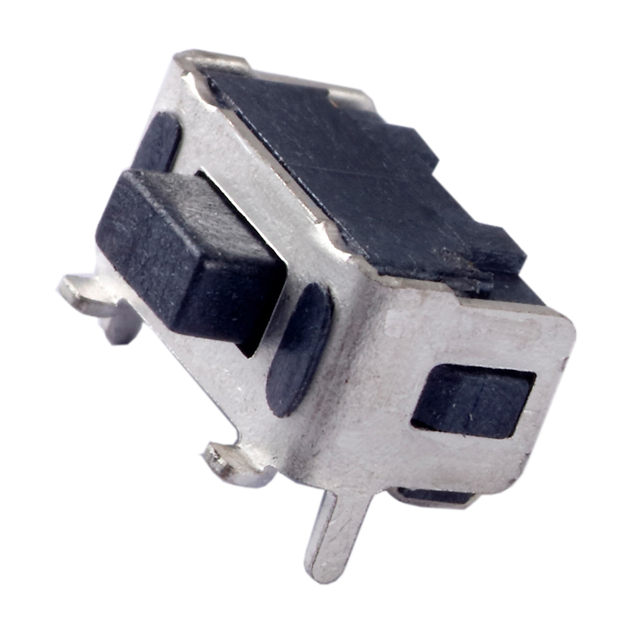

225AJ1SAARG
ActiveTusonix a Subsidiary of CTS Electronic Components
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
225AJ1SAARG
ActiveTusonix a Subsidiary of CTS Electronic Components
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 225AJ1SAARG |
|---|---|
| Actuator Orientation | Side Actuated |
| Actuator Type | Rectangular Button |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Features | Grounding Pin |
| Illumination | Non-Illuminated |
| Mounting Type | Surface Mount, Right Angle |
| Operating Force | 180 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 7.3 mm |
| Outline [y] | 4.7 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25 mm |
| Termination Style | J Lead |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 10000 | $ 0.24 | |
Description
General part information
225AJ1 Series
Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
