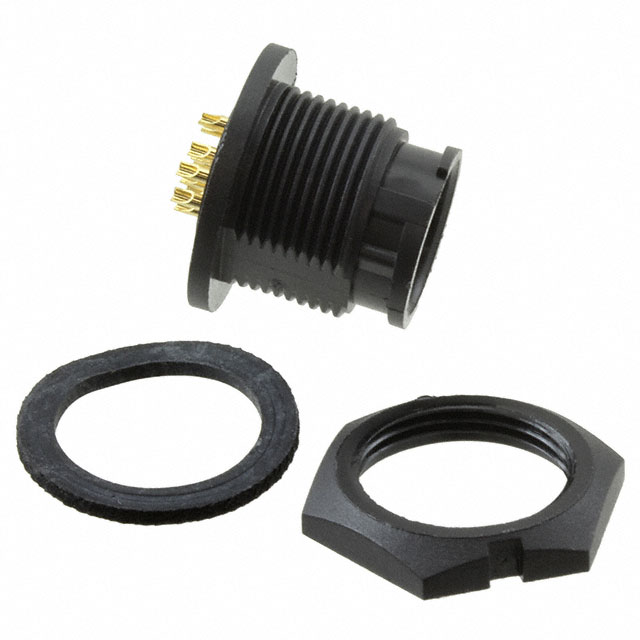

W7882-10SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 10P SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 10P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	W7882-10SG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection	IP69K, IP67
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	10
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	150 VAC

Part	Mounting Feature	Features	Number of Positions	Contact Material	Fastening Type	Contact Finish - Mating	Primary Material	Shielding	Ingress Protection	Color	Voltage Rating	Backshell Material, Plating	Orientation	Applications	Current Rating (Amps)	Connector Type
Conxall/Switchcraft W7882-10PG-300	Bulkhead - Front Side Nut	UV Resistant	10	Copper Alloy	Bayonet Lock	Gold	Plastic	Unshielded	IP67 IP69K	Black	150 VAC	Thermoplastic	Keyed	Automotive Communication Systems Instrumentation	Varies by Wire Gauge	Male Pins Receptacle
Conxall/Switchcraft W7882-10SG-300	Bulkhead - Front Side Nut	UV Resistant	10	Copper Alloy	Bayonet Lock	Gold	Plastic	Unshielded	IP67 IP69K	Black	150 VAC	Thermoplastic	Keyed	Automotive Communication Systems Instrumentation	Varies by Wire Gauge	Receptacle Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Receptacle, Female Sockets Solder Cup
