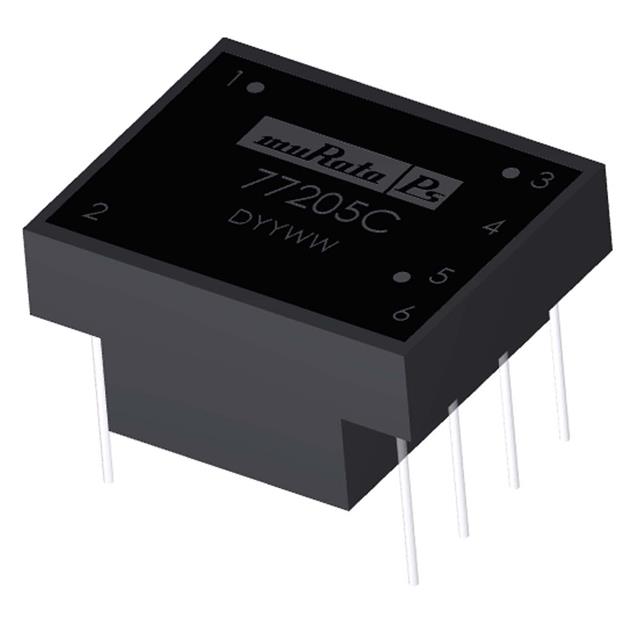

77202C

Active

Murata Power Solutions Inc.

TUBE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

TUBE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	77202C

ET (Volt-Time)	120 VµS
Height - Seated (Max) [Max]	0.484 in
Height - Seated (Max) [Max]	12.3 mm
Inductance	1 mH
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Size / Dimension [x]	1 in
Size / Dimension [x]	25.4 mm
Size / Dimension [y]	0.799 in
Size / Dimension [y]	20.3 mm
Transformer Type	SCR and Triac Trigger (Encapsulated)
Turns Ratio - Primary:Secondary [custom]	1
Turns Ratio - Primary:Secondary [custom]	1
Turns Ratio - Primary:Secondary [custom]	1

Part	Inductance	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Transformer Type	ET (Volt-Time)	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary
Murata Power Solutions Inc. 77202C	1 mH	Through Hole	0.484 in	12.3 mm	1	1	1	0.799 in	1 in	25.4 mm	20.3 mm	70 °C	SCR and Triac Trigger (Encapsulated)	120 VµS
Murata Power Solutions Inc. 77208C	16.3 mH	Through Hole	0.484 in	12.3 mm	1	1	1	0.799 in	1 in	25.4 mm	20.3 mm	70 °C	SCR and Triac Trigger (Encapsulated)	482 VµS
Murata Power Solutions Inc. 77206C	4 mH	Through Hole	0.484 in	12.3 mm	2 CT	1		0.799 in	1 in	25.4 mm	20.3 mm	70 °C	SCR and Triac Trigger (Encapsulated)	240 VµS	1
Murata Power Solutions Inc. 77207C	16.3 mH	Through Hole	0.484 in	12.3 mm				0.799 in	1 in	25.4 mm	20.3 mm	70 °C	SCR and Triac Trigger (Encapsulated)	482 VµS		1:1
Murata Power Solutions Inc. 77205C	4 mH	Through Hole	0.484 in	12.3 mm	1	1	1	0.799 in	1 in	25.4 mm	20.3 mm	70 °C	SCR and Triac Trigger (Encapsulated)	240 VµS
Murata Power Solutions Inc. 77209C	16.3 mH	Through Hole	0.484 in	12.3 mm	2 CT	1		0.799 in	1 in	25.4 mm	20.3 mm	70 °C	SCR and Triac Trigger (Encapsulated)	482 VµS	1
Murata Power Solutions Inc. 77203HVC	1 mH	Through Hole	0.484 in	12.3 mm	2 CT	1		0.799 in	1 in	25.4 mm	20.3 mm	70 °C	SCR and Triac Trigger (Encapsulated)	120 VµS	1
