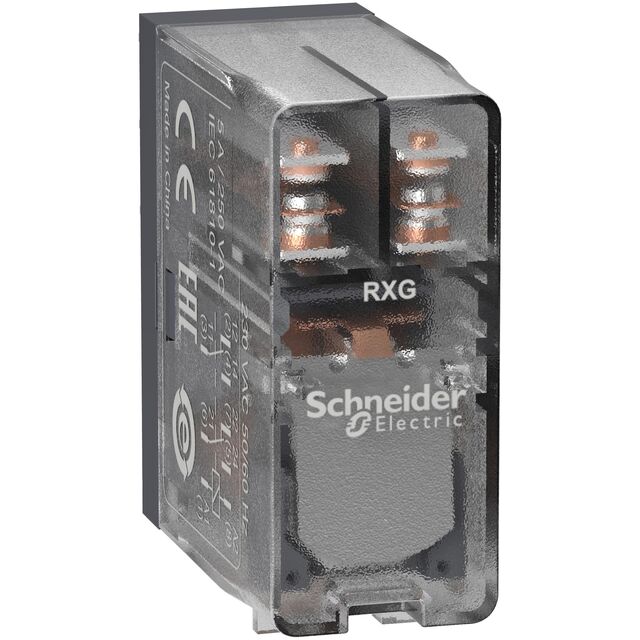

RXG25M7

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 2CO 5A@250VAC 220VAC COIL

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 2CO 5A@250VAC 220VAC COIL

Technical Specifications

Parameters and characteristics for this part

Specification	RXG25M7

Approval Agency	UL, CE, DNV-GL, EAC, CSA
Coil Current	10.5 mA
Coil Insulation	Class F
Coil Resistance	21 kOhms
Coil Type	Non Latching
Coil Voltage	220 VAC/DC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Tin Oxide Indium Oxide (AgSnOInO)
Contact Rating (Current)	5 A
Load - Max Switching	1250 VA, 150 W
Mounting Type	DIN Rail
Must Operate Voltage	176 VAC
Must Release Voltage	66 VAC
Operate Time	20 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	Plug In

Part	Mounting Type	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Coil Voltage	Load - Max Switching	Release Time	Contact Rating (Current)	Switching Voltage [Max]	Must Release Voltage	Coil Type	Contact Material	Approval Agency	Relay Type	Contact Form	Operate Time	Must Operate Voltage	Coil Current	Coil Resistance	Coil Insulation
SQUARE D BY SCHNEIDER ELECTRIC RXG25B7	Socketable	Plug In	-40 °C	70 °C	24 VAC	150 W 1250 VA	20 ms	5 A	30 VDC 250 VAC	7.2 VAC	Non Latching	Silver Tin Oxide Indium Oxide (AgSnOInO)	CE CSA DNV-GL EAC UL	General Purpose	DPDT (2 Form C)	20 ms
SQUARE D BY SCHNEIDER ELECTRIC RXG25BD	Socketable	Plug In	-40 °C	70 °C	24 VDC	150 W 1250 VA	20 ms	5 A	30 VDC 250 VAC	2.4 VDC	Non Latching	Silver Tin Oxide Indium Oxide (AgSnOInO)	CE CSA DNV-GL EAC UL	General Purpose	DPDT (2 Form C)	20 ms	19.2 VDC
SQUARE D BY SCHNEIDER ELECTRIC RXG25P7	Socketable	Plug In	-40 °C	70 °C	230 VAC	150 W 1250 VA	20 ms	5 A	30 VDC 250 VAC	69 VAC	Non Latching	Silver Tin Oxide Indium Oxide (AgSnOInO)	CE CSA DNV-GL EAC UL	General Purpose	DPDT (2 Form C)	20 ms	184 VAC
SQUARE D BY SCHNEIDER ELECTRIC RXG25M7	DIN Rail	Plug In	-40 °C	70 °C	220 VAC/DC	150 W 1250 VA	20 ms	5 A	30 VDC 250 VAC	66 VAC	Non Latching	Silver Tin Oxide Indium Oxide (AgSnOInO)	CE CSA DNV-GL EAC UL	General Purpose	DPDT (2 Form C)	20 ms	176 VAC	10.5 mA	21 kOhms	Class F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each	1	$ 20.47

General part information

General Purpose Relay DPDT (2 Form C) 220VAC Coil DIN Rail
