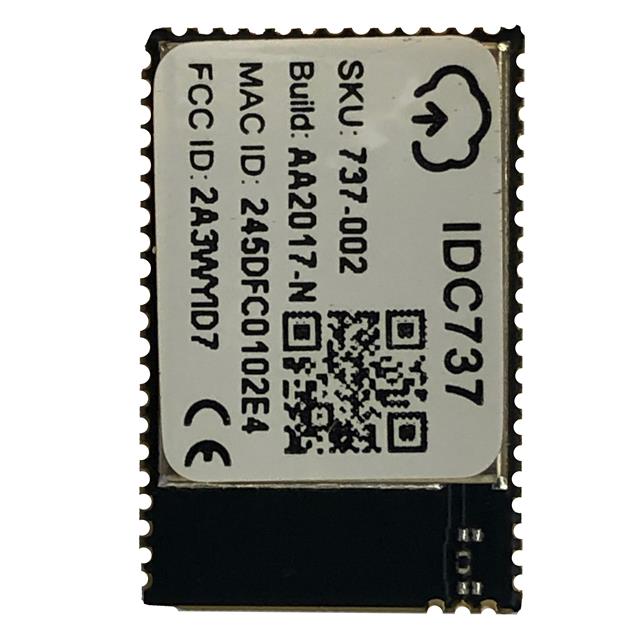

IDC737-1
IOT747
RF TXRX MODULE BLUETOOTH SMD
Deep-Dive with AI
Search across all available documentation for this part.
IDC737-1
IOT747
RF TXRX MODULE BLUETOOTH SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IDC737-1 |
|---|---|
| Antenna Type | Antenna Not Included |
| Data Rate | 3 Mbps |
| Frequency | 2.4 GHz |
| Modulation | 8DPSK, DQPSK, GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 51-SMD Module |
| Power - Output | 13 dBm |
| Protocol | Bluetooth v5.2 |
| RF Family/Standard | Bluetooth |
| Voltage - Supply [Max] | 4.7 V |
| Voltage - Supply [Min] | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 20.64 | |
| Digi-Reel® | 1 | $ 20.64 | ||
| Tape & Reel (TR) | 1000 | $ 13.76 | ||
Description
General part information
IDC737 Series
Bluetooth Bluetooth v5.2 Transceiver Module 2.4GHz Antenna Not Included Surface Mount
Documents
Technical documentation and resources
No documents available
