5008.1012

Active

SCHURTER Inc.

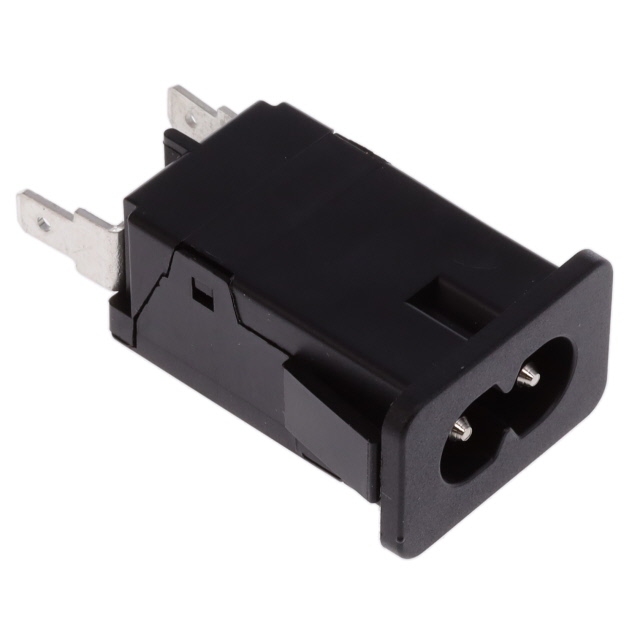

CONNECTOR: AC SUPPLY; SOCKET; MALE; 2.5A; 250VAC; C8 (EURO); 5008

Search across all available documentation for this part.

Active

SCHURTER Inc.

CONNECTOR: AC SUPPLY; SOCKET; MALE; 2.5A; 250VAC; C8 (EURO); 5008

Technical Specifications

Parameters and characteristics for this part

Specification	5008.1012

Accomodates a Fuse	False
Approval Agency	ENEC, cULus
Connector Style	Non-Polarized, IEC 320-C8
Connector Type	Receptacle, Male Pins
Current Rating - Appliance Inlet	2.5 A
Current Rating - Filter	2.5 A
Filter Type	Filtered (EMI, RFI) - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Number of Positions	2
Panel Cutout Dimensions	Rectangular
Panel Cutout Dimensions [x]	27.2 mm
Panel Cutout Dimensions [y]	18 mm
Panel Thickness	1 mm
Panel Thickness	0.039 in
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Accomodates a Fuse	Panel Cutout Dimensions	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Material Flammability Rating	Panel Thickness	Panel Thickness	Number of Positions	Connector Type	Filter Type	Ingress Protection	Connector Style	Current Rating - Filter	Current Rating - Appliance Inlet	Approval Agency	Termination	Termination	Voltage Rating - Appliance Inlet
SCHURTER Inc. 5008.1012		Rectangular	27.2 mm	18 mm	Panel Mount Snap-In	UL94 V-0	1 mm	0.039 in	2	Male Pins Receptacle	Filtered (EMI RFI) - Commercial	IP40	IEC 320-C8 Non-Polarized	2.5 A	2.5 A	cULus ENEC	0.189 " 4.8 mm	Quick Connect	250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 5.87
		60	$ 5.42
TME	N/A	20	$ 7.47

General part information

Power Entry Connector Receptacle, Male Pins IEC 320-C8, Non-Polarized Panel Mount, Snap-In
