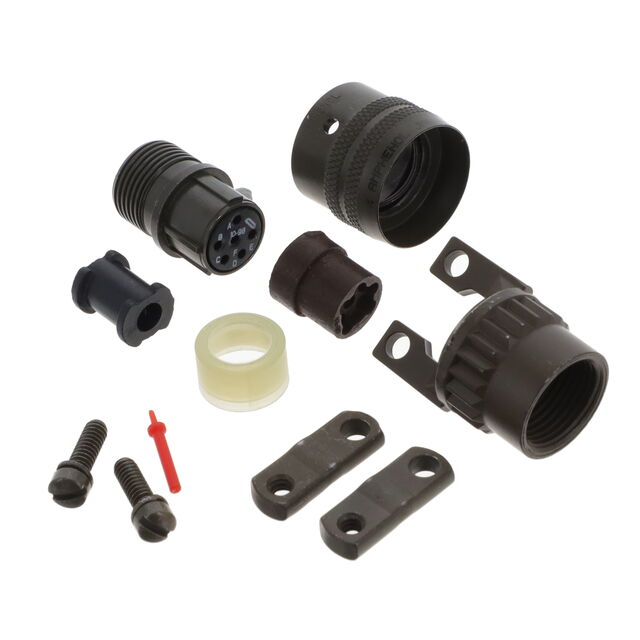

MS3116F10-98S

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB PLUG

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	MS3116F10-98S

Applications	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	98
Shell Size - Insert [Min]	10
Shielding	Unshielded
Voltage Rating	600 VAC

Part	Fastening Type	Qualification	Voltage Rating	Current Rating (Amps)	Contact Material	Shell Finish	Number of Positions	Applications	Color	Ingress Protection	Features	Mounting Type	Contact Finish - Mating	Shell Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shielding	Primary Material	Grade	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insert Material	Backshell Material, Plating
Amphenol Industrial Operations MS3116F10-98S	Bayonet Lock	MIL-DTL-26482 Series I	600 VAC	7.5 A	Copper Alloy	Olive Drab Chromate over Cadmium	6	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Olive Drab	Environment Resistant	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)	Gold	Aluminum Alloy	10	98	Unshielded	Metal	Military	N	-55 °C	125 °C	Female Sockets Plug	Neoprene
Amphenol Industrial Operations MS3116F10-98P	Bayonet Lock	MIL-DTL-26482 Series I			Copper Alloy	Olive Drab Chromate over Cadmium	6	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Olive Drab	Environment Resistant	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)	Gold	Aluminum	10	98	Unshielded	Metal	Military	N	-55 °C	125 °C	Male Pins Plug	Neoprene	Aluminum Olive Drab Chromate over Cadmium

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Plug, Female Sockets Solder Cup
