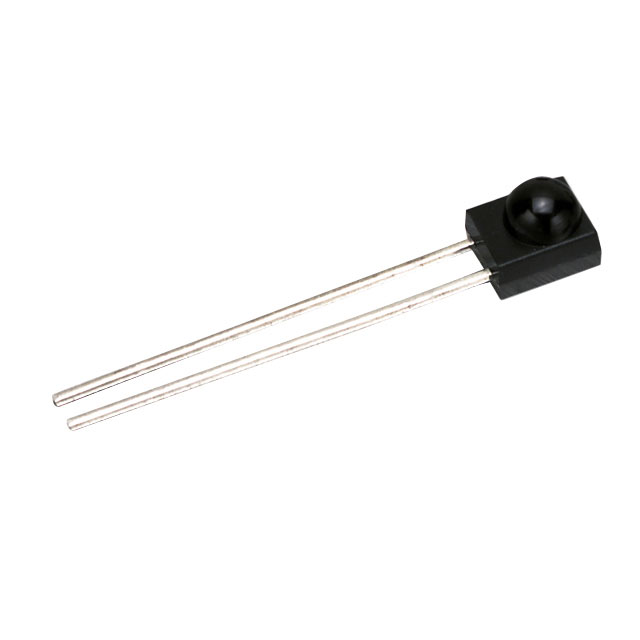

VTP7840H
ObsoleteExcelitas Technologies
SENSOR PHOTODIODE 925NM RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VTP7840H
ObsoleteExcelitas Technologies
SENSOR PHOTODIODE 925NM RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VTP7840H |
|---|---|
| Active Area | 5.27 mm˛ |
| Current - Dark (Typ) | 20 nA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Side View |
| Responsivity @ nm | 0.55 A/W |
| Responsivity @ nm [custom] | 925 nm |
| Spectral Range [Max] [custom] | 1150 nm |
| Spectral Range [Min] [custom] | 725 nm |
| Viewing Angle | 96 ° |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1 V |
| Wavelength | 925 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
VTP7840 Series
Photodiode 925nm 96° Radial, Side View
