19628062295

Active

HARTING Technology Group

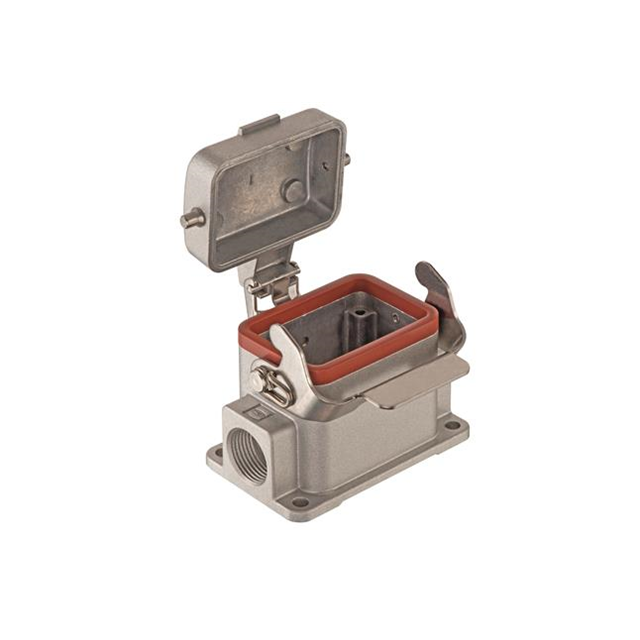

6B SURFACE MOUNT HOUSING, SINGLE LEVER, LOW CONSTRUCTION, 2XM20 W/ COVER - HIGH TEMP VERSION

Search across all available documentation for this part.

Active

HARTING Technology Group

6B SURFACE MOUNT HOUSING, SINGLE LEVER, LOW CONSTRUCTION, 2XM20 W/ COVER - HIGH TEMP VERSION

Technical Specifications

Parameters and characteristics for this part

Specification	19628062295

Connector Type	Base - Box Mount
Features	Feed Through
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-40 °C
Size	6B
Size / Dimension [x]	3.228 in
Size / Dimension [x]	82 mm
Size / Dimension [y]	52 mm
Size / Dimension [y]	2.047 "
Size / Dimension [z]	51.5 mm
Size / Dimension [z]	2.028 in
Style	Side Entry, Dual
Thread Size	M20

Part	Housing Material	Style	Size	Thread Size	Features	Connector Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Lock Location
HARTING Technology Group 19628062295	Aluminum Die Cast	Side Entry Dual	6B	M20	Feed Through	Base - Box Mount	IP65 - Dust Tight Water Resistant	200 °C	-40 °C	52 mm	3.228 in	51.5 mm	2.028 in	2.047 "	82 mm	Locking Clip (1) on Base Bottom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry, Dual M20 6B IP65 - Dust Tight, Water Resistant
