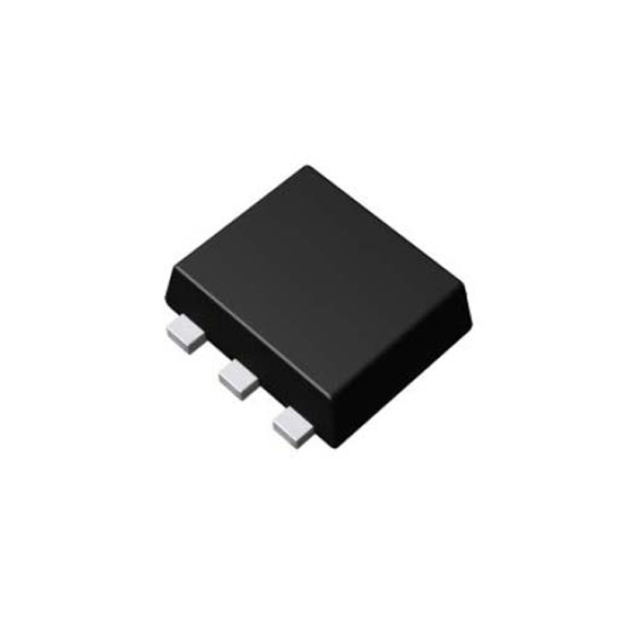

UMH33NTN
ActiveRohm Semiconductor
NPN+NPN, SOT-363, DUAL DIGITAL TRANSISTOR (BIAS RESISTOR BUILT-IN TRANSISTOR)
Deep-Dive with AI
Search across all available documentation for this part.
UMH33NTN
ActiveRohm Semiconductor
NPN+NPN, SOT-363, DUAL DIGITAL TRANSISTOR (BIAS RESISTOR BUILT-IN TRANSISTOR)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UMH33NTN |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 400 mA |
| Current - Collector Cutoff (Max) [Max] | 500 nA |
| Frequency - Transition | 35 MHz |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Resistor - Base (R1) | 2.2 kOhm |
| Supplier Device Package | UMT6 |
| Transistor Type | 2 NPN - Pre-Biased (Dual) |
| Vce Saturation (Max) @ Ib, Ic [Max] | 100 mV |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.81 | |
| 10 | $ 0.50 | |||
| 100 | $ 0.32 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.22 | |||
| Digi-Reel® | 1 | $ 0.81 | ||
| 10 | $ 0.50 | |||
| 100 | $ 0.32 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.22 | |||
| Tape & Reel (TR) | 3000 | $ 0.19 | ||
| 6000 | $ 0.18 | |||
| 9000 | $ 0.17 | |||
| 15000 | $ 0.16 | |||
| 21000 | $ 0.15 | |||
| 30000 | $ 0.15 | |||
Description
General part information
UMH33N Series
Devices integrating two transistors are available in ultra-compact packages, suitable for various applications such as pre-amplifier differential amplification circuits, high-frequency oscillators, driver ICs and so forth.
