300-31277

Active

HELLERMANNTYTON

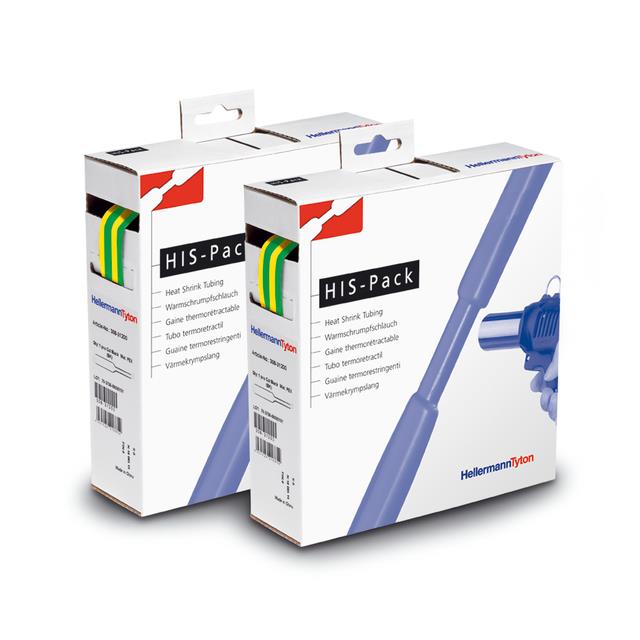

HEATSHRINK 1/2" GREEN/YELLOW

Search across all available documentation for this part.

Active

HELLERMANNTYTON

HEATSHRINK 1/2" GREEN/YELLOW

Technical Specifications

Parameters and characteristics for this part

Specification	300-31277

Color	Green, Yellow
Features	Corrosion Resistant, Self Extinguishing
Inner Diameter - Recovered [diameter]	0.25 in
Inner Diameter - Recovered [diameter]	6.35 mm
Inner Diameter - Supplied [diameter]	12.7 mm
Inner Diameter - Supplied [diameter]	0.5 in
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.58 mm
Recovered Wall Thickness	0.023 in
Shrink Temperature	120 °C
Shrinkage Ratio	2 to 1
Type	Tubing, Flexible

Part	Material	Color	Shrink Temperature	Features	Type	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Shrinkage Ratio	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]
HELLERMANNTYTON 300-31906	Polyolefin (PO)	Blue	120 °C	Corrosion Resistant Self Extinguishing	Tubing Flexible	0.375 in	9.53 mm	0.031 "	0.79 mm	135 °C	-55 °C	2 to 1
HELLERMANNTYTON 300-31270	Polyolefin (PO)	Black	120 °C	Corrosion Resistant Self Extinguishing	Tubing Flexible	0.25 in	6.35 mm	0.023 in	0.58 mm	135 °C	-55 °C	2 to 1	12.7 mm	0.5 in
HELLERMANNTYTON 300-31277	Polyolefin (PO)	Green Yellow	120 °C	Corrosion Resistant Self Extinguishing	Tubing Flexible	0.25 in	6.35 mm	0.023 in	0.58 mm	135 °C	-55 °C	2 to 1	12.7 mm	0.5 in
HELLERMANNTYTON 300-31902	Polyolefin (PO)	Red	120 °C	Corrosion Resistant Self Extinguishing	Tubing Flexible	0.375 in	9.53 mm	0.031 "	0.79 mm	135 °C	-55 °C	2 to 1
HELLERMANNTYTON 300-31900	Polyolefin (PO)	Black	120 °C	Corrosion Resistant Self Extinguishing	Tubing Flexible	0.375 in	9.53 mm	0.031 "	0.79 mm	135 °C	-55 °C	2 to 1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.82
