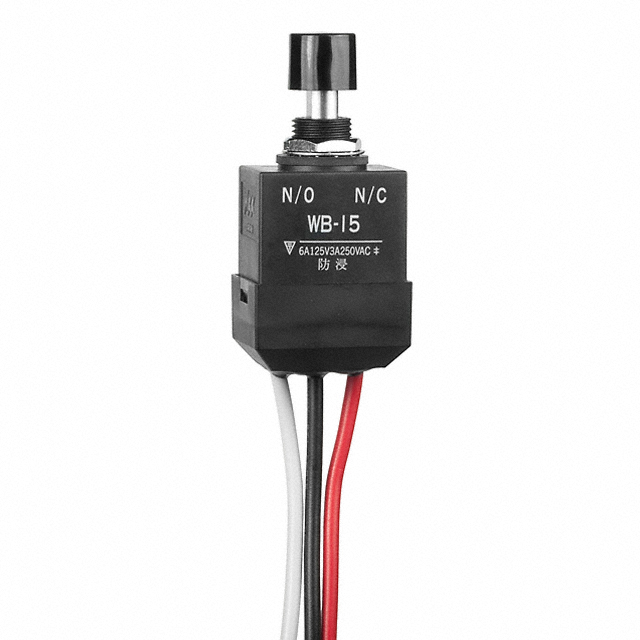

WB15L-DA

Active

NKK Switches

PUSHBUTTON SWITCH, WB SERIES, 12.5 MM, SPDT, ON-(ON), ROUND, BLACK

Search across all available documentation for this part.

Active

NKK Switches

PUSHBUTTON SWITCH, WB SERIES, 12.5 MM, SPDT, ON-(ON), ROUND, BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	WB15L-DA

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	6 A
Electrical Life	15000 Cycles
Features	Stainless Steel
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-Mom
Termination Style	Wire Leads
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Actuator Marking	Electrical Life	Color - Actuator/Cap	Termination Style	Circuit	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Mounting Type	Switch Function	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Features	Type	Voltage Rating - AC	Mechanical Life	Ingress Protection
NKK Switches WB15L-DA	No Marking	15000 Cycles	Black	Wire Leads	SPDT	Button Round	70 °C	-30 ░C	30 V	Panel Mount Rear	On-Mom	12.5 mm	6 A	Stainless Steel	Standard	125 V	30000 Steps	IP67 - Dust Tight Waterproof
NKK Switches WB15L-EF	No Marking	15000 Cycles	Green	Wire Leads	SPDT	Button Round	70 °C	-30 ░C	30 V	Panel Mount Rear	On-Mom	12.5 mm	6 A	Stainless Steel	Standard	125 V	30000 Steps	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Panel Mount, Rear
