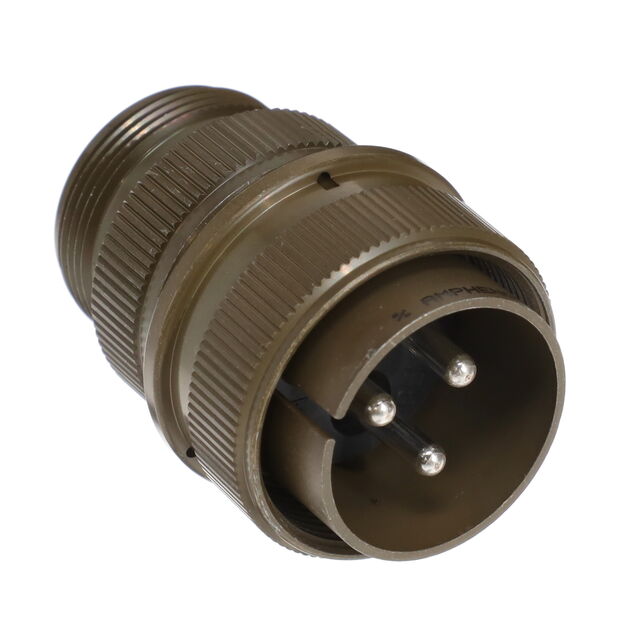

MS3106A22-2P

Active

Amphenol Industrial Operations

CONN PLUG MALE 3P SILV SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

CONN PLUG MALE 3P SILV SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106A22-2P

Applications	Military, Marine
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Features	Coupling Nut, Backshell
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	22-2
Shielding	Unshielded

Part	Insert Material	Orientation	Color	Primary Material	Shell Material	Shielding	Shell Finish	Qualification	Applications	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Connector Type	Mounting Type	Contact Material	Features	Number of Positions	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Ingress Protection	Voltage Rating	Grade	Current Rating (Amps)
Amphenol Industrial Operations MS3106A22-4P
Amphenol Industrial Operations MS3106A22-2P	Neoprene	N	Olive Drab	Metal	Aluminum Alloy	Unshielded	Olive Drab Chromate over Cadmium	MIL-DTL-5015	Marine Military	Silver	-55 °C	125 °C	22-2	Male Pins Plug	Free Hanging (In-Line)	Copper Alloy	Backshell Coupling Nut
Amphenol Industrial Operations MS3106A22-18S	Neoprene	N	Olive Drab	Metal	Aluminum Alloy	Unshielded	Olive Drab Chromate over Cadmium	MIL-DTL-5015	Marine Military	Silver	-55 °C	125 °C		Female Sockets Plug	Free Hanging (In-Line)	Copper Alloy	Backshell Coupling Nut	8	22	18
Amphenol Industrial Operations MS3106A22-5PZ
Amphenol Industrial Operations MS3106A22-13S
Amphenol Industrial Operations MS3106A22-27P
Amphenol Industrial Operations MS3106A22-34P	Neoprene	N	Olive Drab	Metal	Aluminum Alloy	Unshielded	Olive Drab Chromate over Cadmium	MIL-DTL-5015	Marine Military	Silver	-55 °C	125 °C		Male Pins Plug	Free Hanging (In-Line)	Copper Alloy	Backshell Coupling Nut		22	34	Environment Resistant	900 VAC 1250 VDC	Military	13 A 23 A
Amphenol Industrial Operations MS3106A22-5PY
Amphenol Industrial Operations MS3106A22-7P
Amphenol Industrial Operations MS3106A22-30P

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Male Pins Solder Cup
