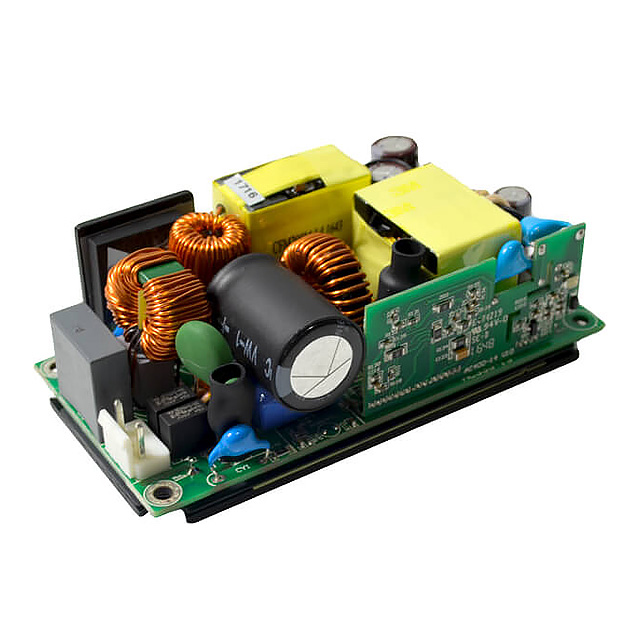

VMS-200-24
ObsoleteCUI Inc.
AC/DC CONVERTER 24V 200W
Deep-Dive with AI
Search across all available documentation for this part.
VMS-200-24
ObsoleteCUI Inc.
AC/DC CONVERTER 24V 200W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VMS-200-24 |
|---|---|
| Applications | Medical |
| Approval Agency | TUV, CB Scheme, EN, IEC, UL |
| Current - Output 1 | 8.33 A |
| Efficiency | 93.5 % |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 ¯C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 200 W |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [x] | 4 in |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 1.48 " |
| Size / Dimension [z] | 37.6 mm |
| Standard Number | 61000-3-2, 61000-3-3, 55011 Class B, 60601-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
VMS-200 Series
| Part | Current - Output 1 | Mounting Type | Voltage - Input [Min] | Voltage - Input [Max] | Features | Voltage - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Number of Outputs | Applications | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Power (Watts) | Approval Agency | Standard Number | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Inc. | 16.67 A | Chassis Mount | 90 VAC | 264 VAC | Universal Input | 12 V | -20 °C | 80 ¯C | 92 % | 1 | Medical | 4000 V | 2 in | 1.48 " | 37.6 mm | 50.8 mm | 101.6 mm | 4 in | 200 W | CB Scheme EN IEC TUV UL | 55011 Class B 60601-1 61000-3-2 61000-3-3 | Open Frame |
CUI Inc. | 16.67 A | Chassis Mount | 90 VAC | 264 VAC | Universal Input | 12 V | -20 °C | 80 ¯C | 92 % | 1 | Medical | 4000 V | 2.44 " | 1.58 " | 40 mm | 62 mm | 117 mm | 4.61 " | 200 W | CB Scheme EN IEC TUV UL | 55011 Class B 60601-1 61000-3-2 61000-3-3 | Enclosed |
CUI Inc. | 4.17 A | Chassis Mount | 90 VAC | 264 VAC | Universal Input | 48 V | -20 °C | 80 ¯C | 93 % | 1 | Medical | 4000 V | 2.44 " | 1.58 " | 40 mm | 62 mm | 117 mm | 4.61 " | 200 W | CB Scheme EN IEC TUV UL | 55011 Class B 60601-1 61000-3-2 61000-3-3 | Enclosed |
CUI Inc. | 8.33 A | Chassis Mount | 90 VAC | 264 VAC | Universal Input | 24 V | -20 °C | 80 ¯C | 93.5 % | 1 | Medical | 4000 V | 2 in | 1.48 " | 37.6 mm | 50.8 mm | 101.6 mm | 4 in | 200 W | CB Scheme EN IEC TUV UL | 55011 Class B 60601-1 61000-3-2 61000-3-3 | Open Frame |
CUI Inc. | 8.33 A | Chassis Mount | 90 VAC | 264 VAC | Universal Input | 24 V | -20 °C | 80 ¯C | 93.5 % | 1 | Medical | 4000 V | 2.44 " | 1.58 " | 40 mm | 62 mm | 117 mm | 4.61 " | 200 W | CB Scheme EN IEC TUV UL | 55011 Class B 60601-1 61000-3-2 61000-3-3 | Enclosed |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
VMS-200 Series
Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
