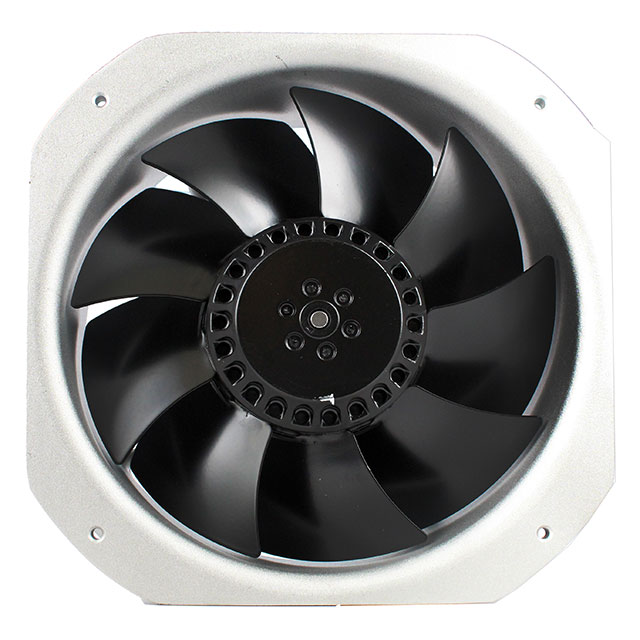

OA225AN-11-1TB18 - OA225AN-11-1TB18_view1

OA225AN-11-1TB18

Active
Orion Fans

AC AXIAL FAN, 115V, CIRCULAR, 225 MM, 80 MM, BALL BEARING, 600 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet ENOne Page Summary EN+1
OA225AN-11-1TB18 - OA225AN-11-1TB18_view1

OA225AN-11-1TB18

Active
Orion Fans

AC AXIAL FAN, 115V, CIRCULAR, 225 MM, 80 MM, BALL BEARING, 600 CFM

Deep-Dive with AI

DocumentsTechnical Data Sheet ENOne Page Summary EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationOA225AN-11-1TB18
Air Flow16.8 mł/min
Air Flow600 CFM
Approval AgencycURus, TUV
Bearing TypeBall
Current Rating (Amps)0.7 A
Fan TypeTubeaxial
FeaturesCapacitor, Thermal Overload Protector (TOP)
Ingress ProtectionIP55 - Dust Protected, Water Resistant
Lifetime @ Temp.40000 Hrs
Material - BladeMetal
Material - FrameAluminum
Noise61 dB(A)
Operating Temperature [Max]80 °C
Operating Temperature [Max]80 C
Operating Temperature [Min]-40 °C
Operating Temperature [Min]-40 °C
Power (Watts)72 W
RPM2800 RPM
Size / DimensionSquare
Size / Dimension [x]225 mm
Size / Dimension [z]225 mm
Static Pressure166.9 Pa
Static Pressure0.67 in H2O
TerminationTerminal Block
Voltage - Rated115 VAC
Voltage Range [Max]125 VAC
Voltage Range [Min]100 VAC
Weight2.1 kg
Weight4.7 lbs
Width [y]80 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 156.04
16$ 143.72
32$ 134.48
56$ 132.43
NewarkEach 1$ 162.33
5$ 158.28
10$ 154.22
25$ 146.10
50$ 137.98

Description

General part information

OA225AN Series

Fan Tubeaxial 115VAC Square - 225mm L x 225mm H Ball 600.0 CFM (16.80m³/min) Terminal Block
