TR10AHC1N

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR CLAMP, STRAIGHT, SEALED, TRIDENT RINGLOCK SERIES, 10, NYLON (POLYAMIDE), 11.1 MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR CLAMP, STRAIGHT, SEALED, TRIDENT RINGLOCK SERIES, 10, NYLON (POLYAMIDE), 11.1 MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	TR10AHC1N

Cable Exit	180 °
Cable Opening [diameter]	0.438 in
Cable Opening [diameter]	11.12 mm
Color	Black
Features	Grommet, Clamp Screws
For Use With/Related Products	Jacketed Cable

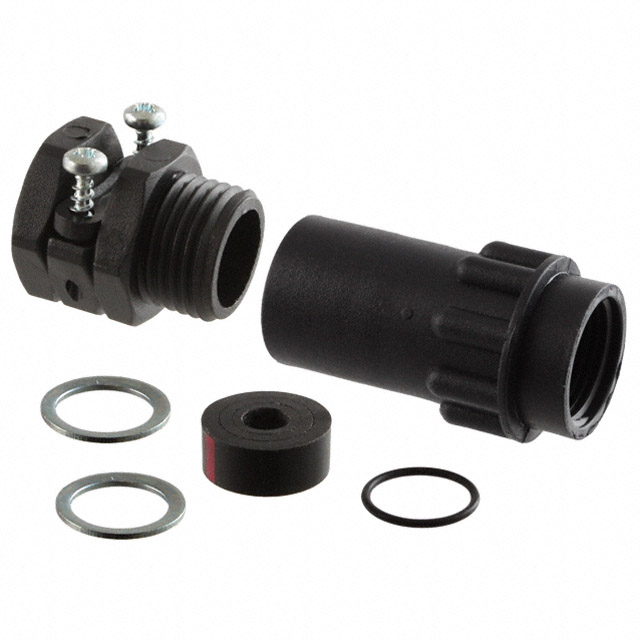

Includes	1 Grommet, 1 O-Ring, 2 Screws, 2 Washers, 2 pc Cable Clamp, 1 Backshell
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Shell Size - Insert	10
Shielding	Unshielded
Type	Backshell, Cable Clamp

Part	Features	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Cable Exit	For Use With/Related Products	Type	Color	Material	Shielding	Material Flammability Rating	Includes	Shell Size - Insert	Ingress Protection	Cable Opening [diameter]	Cable Opening [diameter]
ITT Cannon, LLC TR10ASR1N	Clamp Screws	0.826 in	20.98 mm	180 °	Discrete Wires or Jacketed Cables	Backshell Cable Clamp	Black	Polyamide (PA) Nylon	Unshielded	UL94 V-0	1 Backshell 2 Screws 3 Clamp Bars	10
ITT Cannon, LLC TR10AHC1N	Clamp Screws Grommet			180 °	Jacketed Cable	Backshell Cable Clamp	Black	Polyamide (PA) Nylon	Unshielded	UL94 V-0	1 Backshell 1 Grommet 1 O-Ring 2 pc Cable Clamp 2 Screws 2 Washers	10	IP65 - Dust Tight Water Resistant	0.438 in	11.12 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Connector Backshell, Cable Clamp 10
