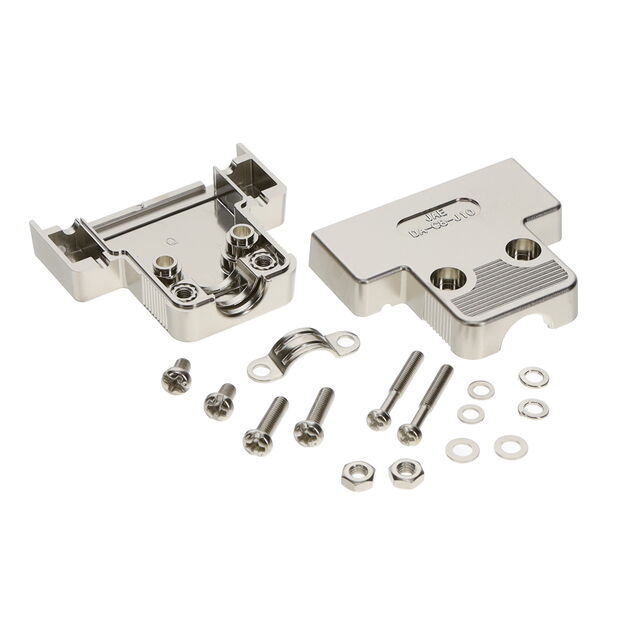

DA-C8-J10-F1-1R

Active

JAE Electronics

DSUB JUNCTION SHELL

Search across all available documentation for this part.

Active

JAE Electronics

DSUB JUNCTION SHELL

Technical Specifications

Parameters and characteristics for this part

Specification	DA-C8-J10-F1-1R

Accessory Type	Two Piece Backshell
Cable Exit	180 °
Cable Type	Round
Color	Silver
Compatible D-Sub Size	15pos, HD26pos
Compatible Shell Size	A
Features	Spring Lock, Mating Screws M2.6
Material	Acrylonitrile Butadiene Styrene (ABS)
Number of Positions	15
Plating	Nickel
Primary Material	Plastic
Shielding	Unshielded

Part	Features	Number of Positions	Compatible Shell Size	Shielding	Plating	Color	Primary Material	Cable Exit	Material	Accessory Type	Compatible D-Sub Size	Cable Type	Hardware
JAE Electronics DA-C8-J10-F2-1R	Mating Screws 4-40 Spring Lock	15	A	Unshielded	Nickel	Silver	Plastic	180 °	Acrylonitrile Butadiene Styrene (ABS)	Two Piece Backshell	15pos HD26pos	Round
JAE Electronics DA-C8-J10-F4-1R	Mating Screws M2.6	15	A	Unshielded			Plastic	180 °	Acrylonitrile Butadiene Styrene (ABS)	Two Piece Backshell	15pos HD26pos	Round	Assembly Hardware
JAE Electronics DA-C8-J10-F1-1R	Mating Screws M2.6 Spring Lock	15	A	Unshielded	Nickel	Silver	Plastic	180 °	Acrylonitrile Butadiene Styrene (ABS)	Two Piece Backshell	15pos HD26pos	Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position Two Piece Backshell Connector Silver 180° Unshielded
