AL6H-M14P-R

Active

IDEC

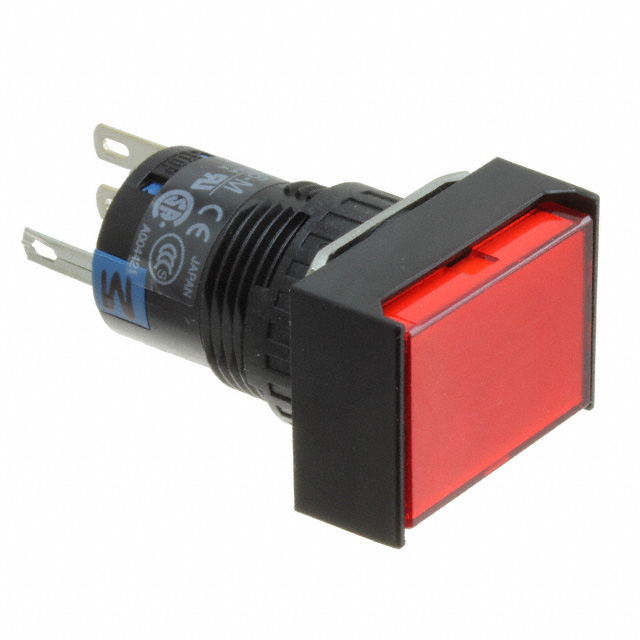

INDUSTRIAL PUSHBUTTON SWITCH, A6 SERIES, 16 MM, SPDT, MOMENTARY, RECTANGULAR, RED

Search across all available documentation for this part.

Active

IDEC

INDUSTRIAL PUSHBUTTON SWITCH, A6 SERIES, 16 MM, SPDT, MOMENTARY, RECTANGULAR, RED

Technical Specifications

Parameters and characteristics for this part

Specification	AL6H-M14P-R

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	SPDT
Color - Actuator/Cap	Red
Electrical Life	100000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	24 VAC/DC
Ingress Protection	IP65
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	120 V
Voltage Rating - DC	24 V

Part	Circuit	Ingress Protection	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Color - Actuator/Cap	Illumination Voltage (Nominal)	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Mounting Type	Voltage Rating - DC	Illumination Type, Color	Switch Function	Termination Style	Termination Style	Termination Style	Electrical Life	Actuator Marking	Type
IDEC AL6H-M14P-R	SPDT	IP65	Rectangular Button	55 °C	-25 °C	1000000 Cycles	Red	24 VAC/DC	120 V	16.2 mm	Panel Mount Front	24 V	LED Red	On-Mom	0.11 in	Quick Connect Solder	2.8 mm	100000 Cycles	No Marking	Illuminated Standard
