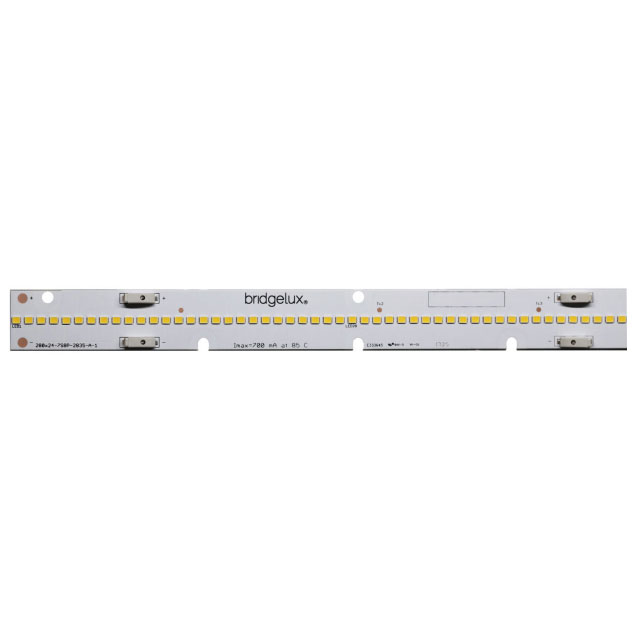

BXEB-L0560Z-30E4000-C-D3

Active

BRIDGELUX

EB GEN 3 HIGH OUTPUT LED MODULE, 560 MM, 3000K, 80 CRI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXEB-L0560Z-30E4000-C-D3

Active

BRIDGELUX

EB GEN 3 HIGH OUTPUT LED MODULE, 560 MM, 3000K, 80 CRI

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXEB-L0560Z-30E4000-C-D3

CCT (K)	3000 K
Color	White, Warm
Configuration	Linear Light Strip
CRI (Color Rendering Index)	80
Current - Max [Max]	2.8 A
Height [z]	6.1 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	185 lm/W
Luminous Flux @ Current/Temperature	4960 lm
Size / Dimension [x]	560 mm
Size / Dimension [y]	24 mm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	19.2 V

BXEB-L0560 Series

Part	Size / Dimension [x]	Size / Dimension [y]	Luminous Flux @ Current/Temperature	Height [z]	Lens Type	Color	CCT (K)	Lumens/Watt @ Current - Test	Viewing Angle	CRI (Color Rendering Index)	Configuration	Current - Max [Max]	Type	Voltage - Forward (Vf) (Typ)	Current - Test	Temperature - Test	Features
BRIDGELUX BXEB-L0560Z-30E4000-C-D3	560 mm	24 mm	4960 lm	6.1 mm	Flat	Warm White	3000 K	185 lm/W	120 °	80	Linear Light Strip	2.8 A	LED Module	19.2 V
BRIDGELUX BXEB-L0560Z-30S2000-C-C3	560 mm	24 mm	2470 lm	6.1 mm	Flat	Warm White	3000 K	127 lm/W	120 °	98	Linear Light Strip	1.92 A	LED Module	20.3 V	960 mA
BRIDGELUX BXEB-L0560Z-30E2000-C-A3	560 mm	24 mm	2410 lm	6.1 mm	Flat	Warm White	3000 K	156 lm/W		80	Linear Light Strip	1.4 A	LED Module	22.1 V		50 °C
BRIDGELUX BXEB-L0560Z-40E2000-C-A3	560 mm	24 mm	2460 lm	6.1 mm	Flat	Neutral White	4000 K	159 lm/W		80	Linear Light Strip	1.4 A	LED Module	22.1 V		50 °C
BRIDGELUX BXEB-L0560Z-40E2000-C-B3	560 mm	24 mm	2460 lm	6.1 mm	Flat	Neutral White	4000 K	175 lm/W	120 °	80	Linear Light Strip	1.4 A	LED Module	19.5 V			With Connector
BRIDGELUX BXEB-L0560Z-57E2000-C-A3	560 mm	24 mm	2460 lm	6.1 mm	Flat	Cool White	5700 K	159 lm/W		80	Linear Light Strip	1.4 A	LED Module	22.1 V		50 °C
BRIDGELUX BXEB-L0560Z-50E2000-C-B3	560 mm	24 mm	2460 lm	6.1 mm	Flat	Cool White		180 lm/W	120 °	80	Linear Light Strip	1.4 A	LED Module	19.5 V
BRIDGELUX BXEB-L0560Z-40S2000-C-C3	560 mm	24 mm	2690 lm	6.1 mm	Flat	Neutral White	4000 K	138 lm/W	120 °	98	Linear Light Strip	1.92 A	LED Module	20.3 V	960 mA
BRIDGELUX BXEB-L0560Z-35E2000-C-A3	560 mm	24 mm	2410 lm	6.1 mm	Flat	Warm White	3500 K	156 lm/W		80	Linear Light Strip	1.4 A	LED Module	22.1 V		50 °C
BRIDGELUX BXEB-L0560Z-57E2000-C-B3	560 mm	24 mm	2460 lm	6.1 mm	Flat	Cool White	5700 K	180 lm/W	120 °	80	Linear Light Strip	1.4 A	LED Module	19.5 V			With Connector

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.46
		10	$ 8.31
		100	$ 6.87
		500	$ 6.01
		1000	$ 5.69

Description

General part information

BXEB-L0560 Series

LED Lighting COBs Engines Modules LED Module EB Series™ Gen 3 White, Warm Linear Light Strip
