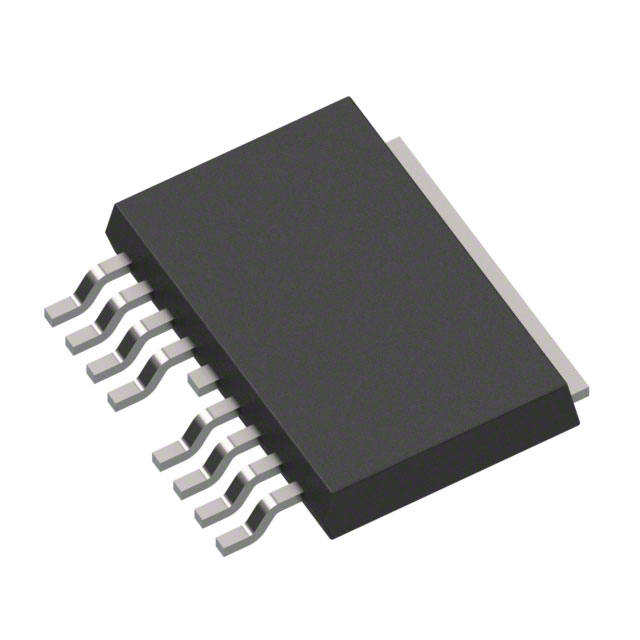

S-19518AY3A-V9T1U4

Active

ABLIC Inc.

IC REG LIN 3.3V 250MA TO252-9S

Search across all available documentation for this part.

Active

ABLIC Inc.

IC REG LIN 3.3V 250MA TO252-9S

Technical Specifications

Parameters and characteristics for this part

Specification	S-19518AY3A-V9T1U4

Control Features	Watchdog, Enable, Reset Out
Current - Output	250 mA
Current - Quiescent (Iq)	9.8 µA
Grade	Automotive
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	TO-252-9, DPAK (8 Leads + Tab)
Protection Features	Over Current, Over Temperature
PSRR	65 dB
Qualification	AEC-Q100
Supplier Device Package	TO-252-9S
Voltage - Input (Max) [Max]	36 V
Voltage - Output (Min/Fixed)	3.3 V
Voltage Dropout (Max) [Max]	0.6 V

Part	Control Features	Current - Output	Protection Features	PSRR	Output Configuration	Voltage Dropout (Max) [Max]	Qualification	Mounting Type	Grade	Voltage - Input (Max) [Max]	Current - Quiescent (Iq)	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Number of Regulators	Output Type	Voltage - Output (Min/Fixed)	Supplier Device Package	Package / Case	Package / Case
ABLIC Inc. S-19518AY2A-V9T1U4	Enable Reset Out Watchdog	250 mA	Over Current Over Temperature	65 dB	Positive	0.6 V	AEC-Q100	Surface Mount	Automotive	36 V	9.8 µA	TO-252-9 DPAK (8 Leads + Tab)	-40 °C	125 °C	1	1.81 mOhm	3.3 V	TO-252-9S
ABLIC Inc. S-19518AFPA-E8T1U4	Enable Reset Out Watchdog	250 mA	Over Current Over Temperature	60 dB	Positive	0.5 V	AEC-Q100	Surface Mount	Automotive	36 V	9.8 µA	8-SOIC	-40 °C	125 °C	1	1.81 mOhm	5 V	8-HSOPA	0.154 in	3.9 mm
ABLIC Inc. S-19518AY3A-V9T1U4	Enable Reset Out Watchdog	250 mA	Over Current Over Temperature	65 dB	Positive	0.6 V	AEC-Q100	Surface Mount	Automotive	36 V	9.8 µA	TO-252-9 DPAK (8 Leads + Tab)	-40 °C	125 °C	1	1.81 mOhm	3.3 V	TO-252-9S
ABLIC Inc. S-19518AFKA-E8T1U4	Enable Reset Out Watchdog	250 mA	Over Current Over Temperature	60 dB	Positive	0.5 V	AEC-Q100	Surface Mount	Automotive	36 V	9.8 µA	8-SOIC	-40 °C	125 °C	1	1.81 mOhm	5 V	8-HSOPA	0.154 in	3.9 mm
ABLIC Inc. S-19518AY3A-E8T1U4	Enable Reset Out Watchdog	250 mA	Over Current Over Temperature	65 dB	Positive	0.6 V	AEC-Q100	Surface Mount	Automotive	36 V	9.8 µA	8-SOIC	-40 °C	125 °C	1	1.81 mOhm	3.3 V	8-HSOPA	0.154 in	3.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.90
	Digi-Reel®	1	$ 2.90
	Tape & Reel (TR)	4000	$ 1.33

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 250mA TO-252-9S
