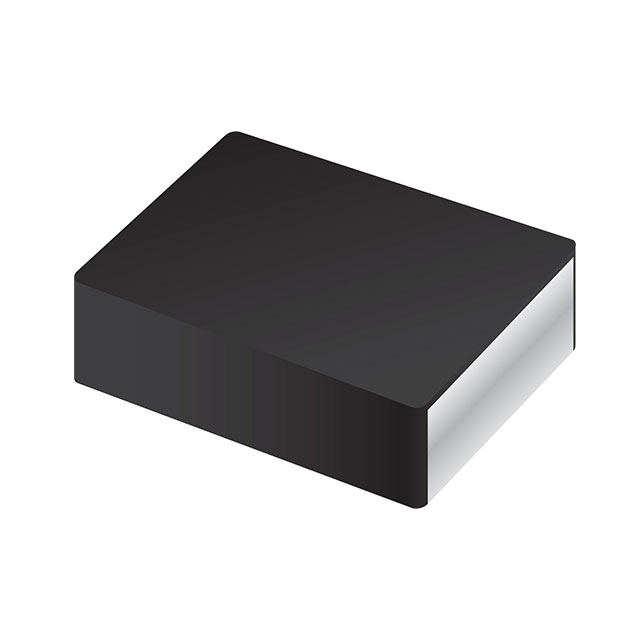

SRP2510A-1R5M

Active

Bourns Inc.

INDUCTOR, 1.5UH, 2.5A, 20%, SHIELDED

Search across all available documentation for this part.

Active

Bourns Inc.

INDUCTOR, 1.5UH, 2.5A, 20%, SHIELDED

Technical Specifications

Parameters and characteristics for this part

Part	Inductance Frequency - Test	DC Resistance (DCR)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Ratings	Q @ Freq	Type	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Material - Core	Tolerance	Package / Case	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Shielding	Frequency - Self Resonant	DC Resistance (DCR) [Max]	Current Rating (Amps)
Bourns Inc. SRP2510A-2R2M	1 MHz	119 mOhm	0.098 "	2 mm	2.5 mm	0.079 in	AEC-Q200	1 MHz 35	Drum Core Wirewound	Surface Mount	0.039 "	1 mm	1008	Iron Powder	20 %	1008	2.4 A	125 °C	-40 °C	2.2 µH	Shielded
Bourns Inc. SRP2510A-1R5M	1 MHz		0.098 "	2 mm	2.5 mm	0.079 in	AEC-Q200	1 MHz 35	Drum Core Wirewound	Surface Mount	0.039 "	1 mm	1008	Iron Powder	20 %	1008	2.6 A	125 °C	-40 °C	1.5 µH	Shielded	68 MHz	91 mOhm	2.5 A
Bourns Inc. SRP2510A-4R7M	1 MHz		0.098 "	2 mm	2.5 mm	0.079 in	AEC-Q200	1 MHz 35	Drum Core Wirewound	Surface Mount	0.039 "	1 mm	1008	Iron Powder	20 %	1008	1.8 A	125 °C	-40 °C	4.7 ÁH	Shielded	40 MHz	262 mOhm	1.36 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.5 µH Shielded Drum Core, Wirewound Inductor 2.5 A 91mOhm Max 1008 (2520 Metric)
