BWA-HW-030

Active

BANNER ENGINEERING

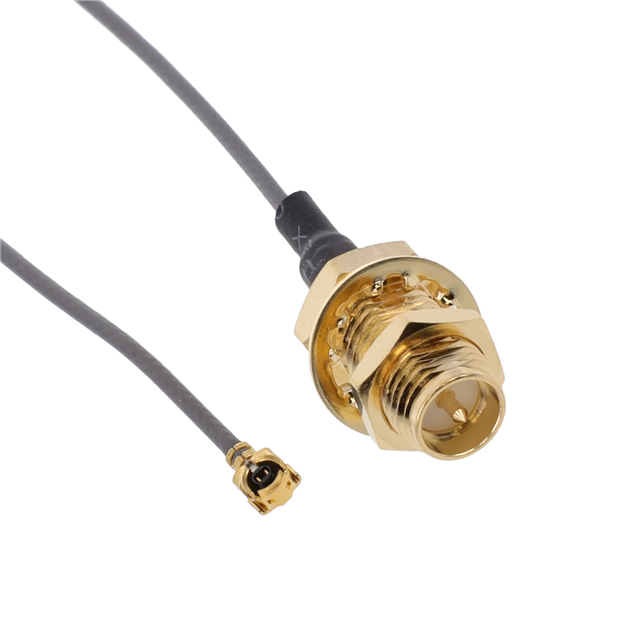

CBL ASSY U.FL-RPSMA JK-PL 7.874"

Search across all available documentation for this part.

Active

BANNER ENGINEERING

CBL ASSY U.FL-RPSMA JK-PL 7.874"

Technical Specifications

Parameters and characteristics for this part

Specification	BWA-HW-030

1st Connector	RP-SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	U.FL (UMCC) Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Color	Gray
Length	7.874 in
Length	200 mm
Overall Impedance	50 Ohms
Style	U.FL (UMCC) to RP-SMA

Part	1st Connector	Overall Impedance	Length	Length	1st Contact Gender	2nd Contact Gender	1st Connector Mounting Feature	2nd Connector	Color	2nd Connector Mounting Type	Style	1st Connector Mounting Type	Accessory Type
BANNER ENGINEERING BWA-HW-030	RP-SMA Jack	50 Ohms	7.874 in	200 mm	Male	Female	Bulkhead - Front Side Nut	U.FL (UMCC) Plug Right Angle	Gray	Free Hanging (In-Line)	U.FL (UMCC) to RP-SMA	Panel Mount
BANNER ENGINEERING BWA-HW-057
BANNER ENGINEERING BWA-HW-017													Antenna Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 24.00
Newark	Each	1	$ 25.00

General part information

Cable Assembly Coaxial U.FL (UMCC) to RP-SMA 7.874" (200.00mm)

Technical documentation and resources

No documents available
