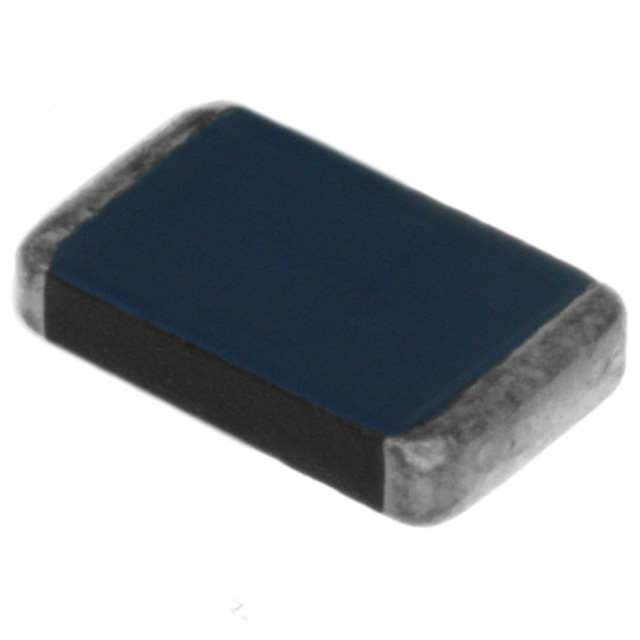

MLVC22V042C1600

Active

Eaton - Electronics Division

VARISTOR 56V 600A 2220

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MLVC22V042C1600

Active

Eaton - Electronics Division

VARISTOR 56V 600A 2220

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MLVC22V042C1600

Capacitance @ Frequency	1600 pF
Current - Surge	600 A
Energy	2.5 J
Maximum AC Volts [Max]	30 V
Maximum DC Volts [Max]	42 V
Mounting Type	Surface Mount, MLCV
Number of Circuits	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	5750 Metric
Package / Case	2220
Varistor Voltage (Max) [Max]	61.6 V
Varistor Voltage (Min) [Min]	50.4 V
Varistor Voltage (Typ)	56 V

MLVC22 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits	Maximum AC Volts [Max]	Energy	Mounting Type	Varistor Voltage (Typ)	Varistor Voltage (Max) [Max]	Varistor Voltage (Min) [Min]	Package / Case	Package / Case	Current - Surge	Maximum DC Volts [Max]	Capacitance @ Frequency	Varistor Voltage (Min)
Eaton - Electronics Division MLVC22V026C2500	125 °C	-55 °C	1	18.4 V	2.5 J	Surface Mount MLCV	36 V	39.6 V	32.4 V	5750 Metric	2220	600 A	26 V
Eaton - Electronics Division MLVC22V024C3000	125 °C	-55 °C	1	17 V	2.5 J	Surface Mount MLCV	33 V	36.3 V		5750 Metric	2220	600 A	24 V	3000 pF	29.7 V
Eaton - Electronics Division MLVC22V033C2000	125 °C	-55 °C	1	23.3 V	2.5 J	Surface Mount MLCV	45 V	49.5 V	40.5 V	5750 Metric	2220	600 A	33 V	2000 pF
Eaton - Electronics Division MLVC22V018C4000	125 °C	-55 °C	1	12.7 V	2.5 J	Surface Mount MLCV	25 V	27.5 V	22.5 V	5750 Metric	2220	600 A	18 V	4000 pF
Eaton - Electronics Division MLVC22V022C3500	125 °C	-55 °C	1	15.6 V	2.5 J	Surface Mount MLCV	30 V	33 V	27 V	5750 Metric	2220	600 A	22 V	3500 pF
Eaton - Electronics Division MLVC22V056C1000	125 °C	-55 °C	1	40 V	2.5 J	Surface Mount MLCV	72 V	79.2 V	64.8 V	5750 Metric	2220	600 A	56 V	1000 pF
Eaton - Electronics Division MLVC22V042C1600	125 °C	-55 °C	1	30 V	2.5 J	Surface Mount MLCV	56 V	61.6 V	50.4 V	5750 Metric	2220	600 A	42 V	1600 pF
Eaton - Electronics Division MLVC22V060C800	125 °C	-55 °C	1	45 V	2.5 J	Surface Mount MLCV	76 V	83.6 V	68.4 V	5750 Metric	2220	600 A	60 V	800 pF
Eaton - Electronics Division MLVC22V048C1400	125 °C	-55 °C	1	34 V	2.5 J	Surface Mount MLCV	62 V	68.2 V	55.8 V	5750 Metric	2220	600 A	48 V	1400 pF
Eaton - Electronics Division MLVC22V038C1800	125 °C	-55 °C	1	27 V	2.5 J	Surface Mount MLCV	51 V	56.1 V	45.9 V	5750 Metric	2220	600 A	38 V	1800 pF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.50

Description

General part information

MLVC22 Series

56 V 600 A Varistor 1 Circuit Surface Mount, MLCV 2220 (5750 Metric)
