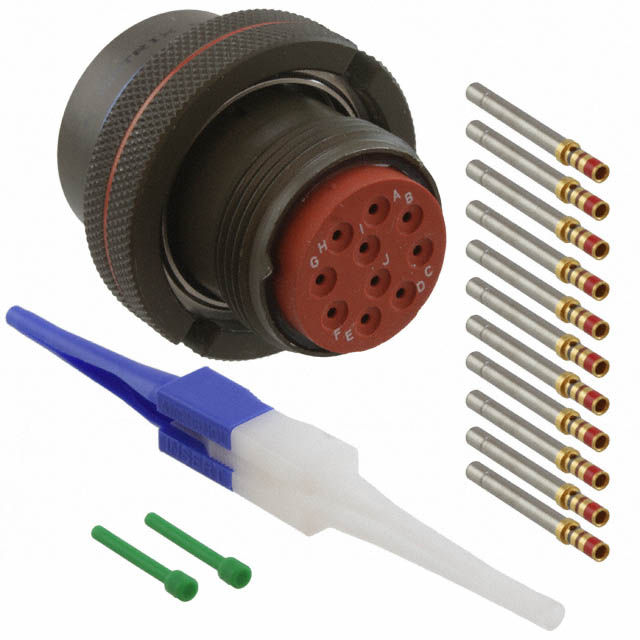

MS3459W18-1S

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 10POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 10POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	MS3459W18-1S

Applications	Aviation, Military, Automotive
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut, Self Locking
Grade	Military
Ingress Protection	Fluid Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	1
Shell Size - Insert [Min]	18
Shielding	Unshielded
Termination	Crimp

Part	Operating Temperature [Min]	Operating Temperature [Max]	Color	Applications	Orientation	Primary Material	Grade	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Connector Type	Mounting Type	Contact Finish - Mating	Termination	Contact Material	Shell Finish	Shielding	Qualification	Shell Material	Number of Positions	Features	Ingress Protection
Amphenol Aerospace Operations MS3459W18-1S	-55 °C	347 °F	Olive Drab	Automotive Aviation Military	N	Metal	Military	1.27 µm	50 µin	1	18	Female Sockets Plug	Free Hanging (In-Line)	Gold	Crimp	Copper Alloy	Olive Drab Cadmium	Unshielded	MIL-DTL-5015	Aluminum	10	Coupling Nut Self Locking	Fluid Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 (Power) Position Circular Connector Plug, Female Sockets Crimp
