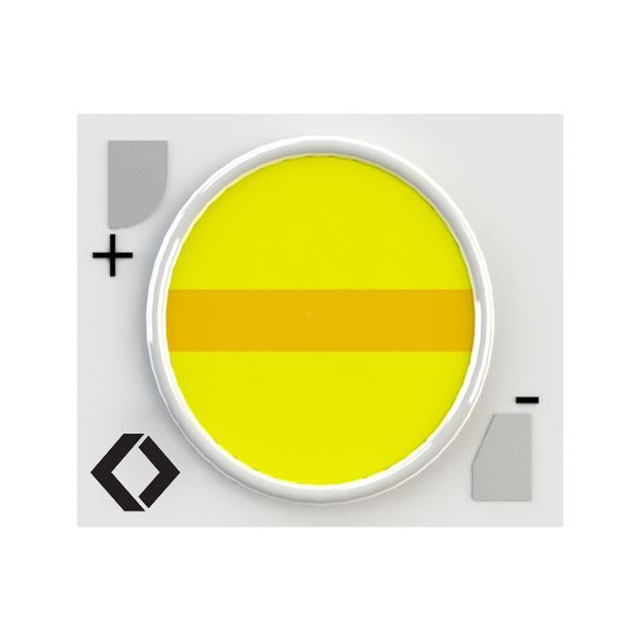

COB-WD-10-1512-30K-18K-90

Active

Luxtech, LLC

LED COB WARM WHT RECT 3000K

Search across all available documentation for this part.

Active

Luxtech, LLC

LED COB WARM WHT RECT 3000K

Technical Specifications

Parameters and characteristics for this part

Specification	COB-WD-10-1512-30K-18K-90

CCT (K) [Max]	3000 K
CCT (K) [Min]	1800 K
Color	White, Warm
Configuration	Rectangle
CRI (Color Rendering Index)	90
Current - Max [Max]	385 mA
Current - Test	350 mA
Height [z]	1.5 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	10 mm
Lumens/Watt @ Current - Test	98 lm/W
Luminous Flux @ Current/Temperature	1220 lm
Size / Dimension [x]	15 mm
Size / Dimension [y]	12 mm
Type	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	36 V

Part	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Lens Type	Light Emitting Surface (LES) [diameter]	Color	Type	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	CCT (K) [Max]	CCT (K) [Min]	Current - Test	Configuration
Luxtech, LLC COB-WD-17-2420-30K-18K-90	3600 lm	110 lm/W	1.6 mm	19.9 mm	23.9 mm	1.05 A	Flat	17 mm	Warm White	Chip On Board (COB)	34.5 V	90	3000 K	1800 K	950 mA	Rectangle
Luxtech, LLC COB-WD-10-1512-30K-18K-90	1220 lm	98 lm/W	1.5 mm	12 mm	15 mm	385 mA	Flat	10 mm	Warm White	Chip On Board (COB)	36 V	90	3000 K	1800 K	350 mA	Rectangle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) - White, Warm Rectangle
