A279V,BK

Active

Serpac

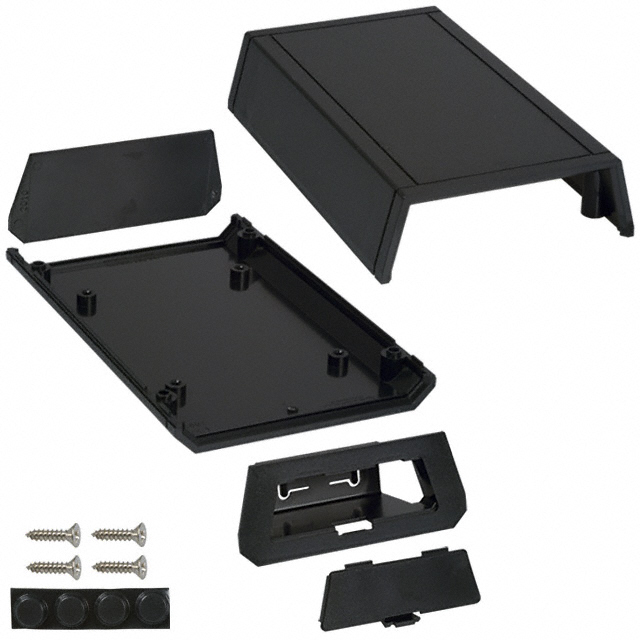

BOX ABS BLACK 5.31"L X 3.35"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 5.31"L X 3.35"W

Technical Specifications

Parameters and characteristics for this part

Specification	A279V,BK

Area (L x W)	17.8 in²
Area (L x W)	115 cm˛
Color	Black
Container Type	Box
Design	Split Sides and End Panel(s)
Features	Battery Compartment, PCB Supports
Features	9 V
Height [z]	38.1 mm
Height [z]	1.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Thickness	2.54 mm
Thickness	0.1 in
Weight	99.79 g
Weight	0.22 lb

Part	Material Flammability Rating	Material	Container Type	Features	Features	Color	Weight	Weight	Area (L x W)	Area (L x W)	Thickness	Thickness	Design	Ratings	Height [z]	Height [z]
Serpac A279V,BK	UL94 HB	Plastic ABS	Box	Battery Compartment PCB Supports	9 V	Black	99.79 g	0.22 lb	17.8 in²	115 cm˛	2.54 mm	0.1 in	Split Sides and End Panel(s)	IP40	38.1 mm	1.5 in
Serpac A279V,GY	UL94 HB	Plastic ABS	Box	Battery Compartment PCB Supports	9 V	Gray	99.79 g	0.22 lb	17.8 in²	115 cm˛	2.54 mm	0.1 in	Split Sides and End Panel(s)	IP40	38.1 mm	1.5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Split Sides and End Panel(s) 5.310" L x 3.350" W (134.87mm x 85.09mm) X 1.500" (38.10mm)
