342-038-500-102
ActiveEDAC Inc.

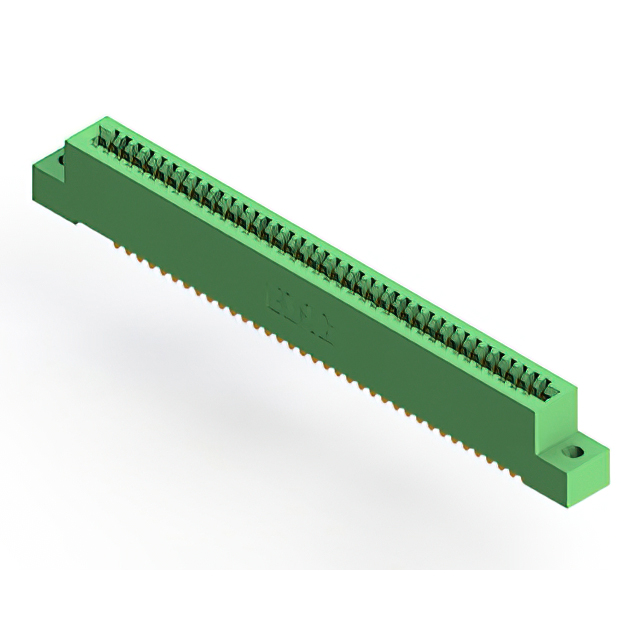

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 38 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
342-038-500-102
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 38 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-038-500-102 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 38 |
| Number of Positions/Bay/Row [custom] | 38 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
342-038 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Read Out | Contact Type | Contact Material | Number of Rows | Gender | Card Type | Termination | Material - Insulation | Features | Number of Positions | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Contact Finish | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 10 Áin | 0.25 Ám | 2 | Dual | Cantilever | Copper Alloy | 2 | Female | Non Specified - Dual Edge | Solder Eyelet(s) | Polyester Thermoplastic | Card Extender | 38 | 19 | 2.54 mm | 0.1 in | Gold | |||
EDAC Inc. | -40 °C | 105 ░C | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 10 Áin | 0.25 Ám | 2 | Dual | Cantilever | Copper Alloy | 2 | Female | Non Specified - Dual Edge | Wire Wrap | Polyester Thermoplastic | 38 | 19 | 2.54 mm | 0.1 in | Gold | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | -40 °C | 105 ░C | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 10 Áin | 0.25 Ám | 1 | Single | Cantilever | Copper Alloy | 1 | Female | Non Specified - Single Edge | Solder Wire Wrap | Polyester Thermoplastic | 38 | 38 | 2.54 mm | 0.1 in | Gold | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | |
EDAC Inc. | -40 °C | 105 ░C | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 10 Áin | 0.25 Ám | 2 | Dual | Cantilever | Copper Alloy | 2 | Female | Non Specified - Dual Edge | Wire Wrap | Polyester Thermoplastic | 38 | 19 | 2.54 mm | 0.1 in | Gold | ||||
EDAC Inc. | -40 °C | 105 ░C | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 10 Áin | 0.25 Ám | 1 | Single | Cantilever | Copper Alloy | 1 | Female | Non Specified - Single Edge | Solder Eyelet(s) | Polyester Thermoplastic | 38 | 38 | 2.54 mm | 0.1 in | Gold | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | |
EDAC Inc. | -40 °C | 105 ░C | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 10 Áin | 0.25 Ám | 1 | Single | Cantilever | Copper Alloy | 1 | Female | Non Specified - Single Edge | Wire Wrap | Polyester Thermoplastic | 38 | 38 | 2.54 mm | 0.1 in | Gold | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | -40 °C | 105 ░C | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 10 Áin | 0.25 Ám | 1 | Single | Cantilever | Copper Alloy | 1 | Female | Non Specified - Single Edge | Solder | Polyester Thermoplastic | 38 | 38 | 2.54 mm | 0.1 in | Gold | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | |
EDAC Inc. | -40 °C | 105 ░C | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 10 Áin | 0.25 Ám | 1 | Single | Cantilever | Copper Alloy | 1 | Female | Non Specified - Single Edge | Solder Wire Wrap | Polyester Thermoplastic | 38 | 38 | 2.54 mm | 0.1 in | Gold | ||||
EDAC Inc. | -40 °C | 105 ░C | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 10 Áin | 0.25 Ám | 2 | Dual | Cantilever | Copper Alloy | 2 | Female | Non Specified - Dual Edge | Solder | Polyester Thermoplastic | 38 | 19 | 2.54 mm | 0.1 in | Gold | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | |
EDAC Inc. | -40 °C | 105 ░C | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | 10 Áin | 0.25 Ám | 2 | Dual | Cantilever | Copper Alloy | 2 | Female | Non Specified - Dual Edge | Solder | Polyester Thermoplastic | Card Extender | 38 | 19 | 2.54 mm | 0.1 in | Gold | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
342-038 Series
38 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
